Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment

China Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment supplier
Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment supplier Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment supplier Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment supplier Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment supplier Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment supplier Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment supplier

Large Image :  Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F764

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electronic Product Name: Furniture Testing Equipment
Maximum Size Of Mattress: 2.2m×2m Type: Cornell Mattress Testing Equipment
Standard: ASTM F1566, EN1957

Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment



1. Product description:

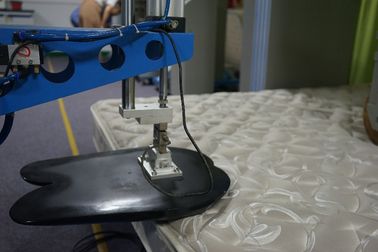

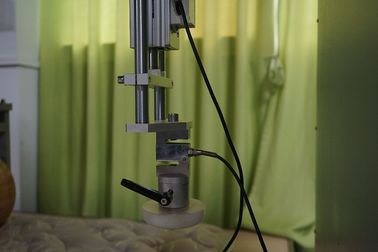

It apply to Innerspring, Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.



2. Test purpose:

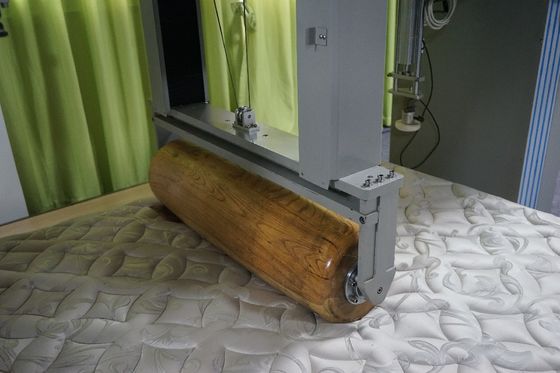

Cornell Mattress Testing Equipment is using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress , simulate human motion to assess the durability of the mattress.



3. The usage
Matttress Durability Tester is designed to simulate human motion to assess the durability of the mattress.



4. Test standard:

ASTM F1566, EN1957



5. Function and features:

Item Specification
Applicable mattress maximum size 2.2m X 2 m
Controller Mitsubishi PLC + color touch screen + data output function
Roller type Hexagonal roller
Round roller
Test stroke 1) ASTM 1566: Max. Mattress width, Min. 70% of mattress width or 38in (965mm) whichever is smaller
2) BS EN 1957: 250mm on the left and right of the mattress centerline
3) GB / T 26706: 250mm on the left and right of the midline
4) QB / T 1952.2: 250mm on the left and right of the mattress centerline
Test speed 0-20r / min
Transmission device high-precision servo system
High loss test high precision servo measurement system
Mattress edge a, test times: 5000 times;
b, pressure holding time: 3 seconds;
c, test force value: 1000N
Power supply 3∮, AC380V, 5kW
Design standards ASTM F1566-2009, EN1957, GB / T 26706-2011, QB / T 1952.2-2011



6. The main components:

  1. Motor: Taiwan's Teco Motor with reducer of Italy.
  2. Speed adjustment: Taiwan's "Ed Force" drive
  3. Guide bearing: Import from Japan.
  4. Rack: aluminum body and steel
  5. Control elements: Imported.

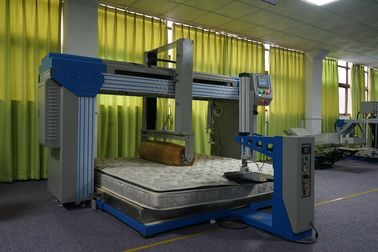

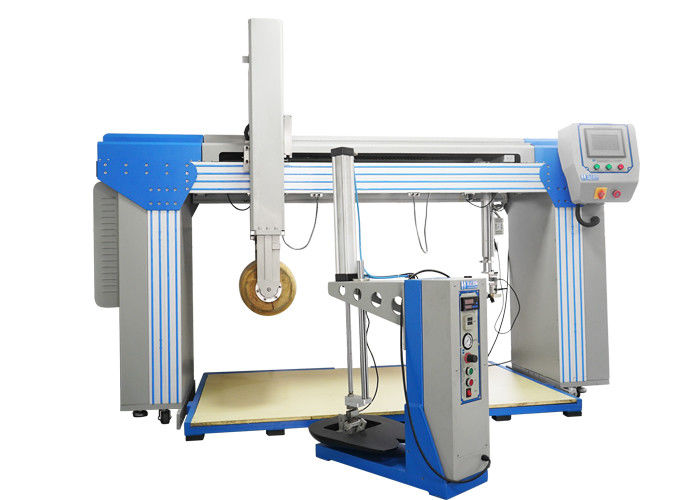

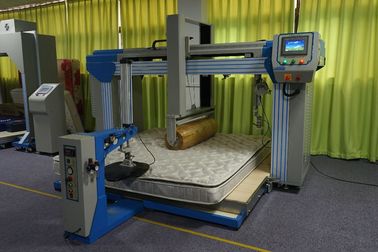

7. The image of the machine



Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment

Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment



The Introduction Of HAIDA :
HAIDA INTERNATIONAL
is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Integrate Furniture Testing Machines , Cornell Mattress Testing Equipment



Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Pre-service

--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.

Middle service

--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.

After sale service

--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
