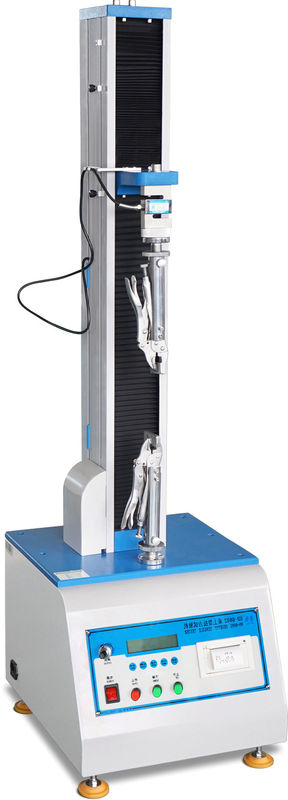

Bend / Peel / Tensile Strength Tester 2KN With Microcomputer Display / Single Column

China Bend / Peel / Tensile Strength Tester 2KN With Microcomputer Display / Single Column supplier
Bend / Peel / Tensile Strength Tester 2KN With Microcomputer Display / Single Column supplier Bend / Peel / Tensile Strength Tester 2KN With Microcomputer Display / Single Column supplier Bend / Peel / Tensile Strength Tester 2KN With Microcomputer Display / Single Column supplier

Large Image :  Bend / Peel / Tensile Strength Tester 2KN With Microcomputer Display / Single Column

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B602

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Accuracy: ±0.5% Capacity: 5, 10, 20, 25, 50, 100, 200kg
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Motor: AC Motor Power: 1/100,000
Resolution: 1/100,000 Sensor: Load Cell
Type: Tensile Tester Port: ±0.5%

Bend / Peel / Tensile Strength Tester 2KN With Microcomputer Display / Single Column


601 602 haida universal test machine.pdf



undefined Tensile Strength Test Equipment Video



Main Technical Parameter

Item Description
Max. Force 200 kg (2KN)
Load cell China brand load cell
Control system Controller with LED
Printing Built-in Printer
Motor AC Motor, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 900mm including fixture
Load cell Resolution 1/100,000
Load Precision within ±0.5%
Test speed 20~300mm/min (adjustable)
Data display Max. break force
Safety features

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat





Product Description

This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.



Standards:
inculding but not limited to ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113



Product Features

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)

2. Control system: Microcomputer

3. Displacement resolution: 0.001mm

4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.

Bend / Peel / Tensile Strength Tester 2KN With Microcomputer Display / Single Column



Generl Specifications

Packaging Dimensions: (W*D*H) 600*550*1500mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 65kg



Optional Accessories

Clamps

  • Tape/Film/Paper Tear Clamp (50kg)
  • 180&90 Degree Peel Clamp (50kg)
Related products:
HD-609/604 2000 kg (20KN)Max. Force / for Tape, rubber, plastic, textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-611 10T (100KN) Max. Force / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-615 5000 kg (50KN) Max. Force / for textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-B616 20KN-1000KN (Hydraulic) load range / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
