Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machines

Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machines
Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machines Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machines Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machines

Large Image :  Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machines

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E712

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic Product Name: Environmental Testing Chambers
Application: Testing The Adaptability And Reliability Power Supply: 110V, 60HZ
Controller: Import FM Type Inverter Spray Ring Radius: 375 And 500mm
High Light:

environmental testing equipment

,

environmental testing machine



Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machines

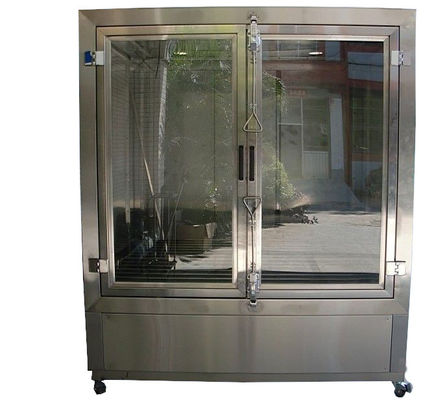

Chamber structure:



The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.



Large area of visible glass door, easy to observe the test specimens in the testing chamber

The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.

With 270 degree swing pipe & 360 degrees whorl pole water jet device.

Adjustable speed samples stage.





Application:



The product is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.





Feature:



1, Studio equipped with lighting equipment

2.  Rain time, interval time, rainfall intensity, regulate and control apart.





Control system:



(Germany) admiralty. Per stig moller programmable controller to complete the contrl of the whole system of time and sequence.Adopt imported frequency converter speed effectively guarantee the test according to the standard operation.





The main technical parameters:



Spray ring radius:  375 and 500mm
Water pipe diameter:  φ16mm
Spray orifice diameter: φ0.4mm
Aperture spacing: 500mm
Swing pipe :  ±45°,±60°,±90°,±180°(theory number)
Test stands rotate speed :  1r/min(can be no quarter speed adjustment)
Controller:  Import FM type inverter
Water pressure control:  flow gauge
Times controller:  Import programmable computer integrated time controller (Jin Zhong Mo le)
Observation plane:  Large area of toughened glass door visualization ,

Water supply system, booster pump, water storage

Safety protection leakage, Short circuit, Motor overheating

Power supply:  110V, 60HZ





Meet standard:

GB10485-89






 Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machines 0
