| Box Material: | Stainless Steel SUS304# | Humiture Range: | (RT+10)~70C; 30~98%RH |
|---|---|---|---|
| Power: | Electronic | Product Name: | Xenon Test Chamber |
| Rainfall Time: | 1~9999min, Adjustable | Model: | HD-E711 |
| High Light: | accelerated aging chamber,uv aging test chamber |
||
Weathering Accelerated Environmental Xenon Test Chamber for Plastic
Application:
I. Purpose: Xenon arc test chamber are used for the best simulation of full-spectrum sunlight to reproduce destructive waves existing in different environments. Used for scientific research, product development and quality control to provide the appropriate environment simulation and accelerated testing. Xenon weathering test can be used for the durability test after the selection of new materials, improving existing assessment materials or changes in material composition changes, this test chamber can be use for best simulation of material changes when exposure to the sun in different environmental conditions.
Features:
1. Advanced design technology and concept
2. Excellent technology of producing and outstanding system of quality management,
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet, visible and infrared.
4. A full range of spectrum, necessary for most textile sun and color fastness test.
Environmental Xenon Test Chamber Equipment With LCD Touch Screen
CompanyServices:
All Hai da employeesadheretothe"Qualitycomesfromprecision,qualitycreatesthefuture"businessphilosophy,
serveeachclientactivelyandconscientiouslyinordertosatisfyHaidaequipmentbrandconsumers' needs.
XenonTesting Machine
| Item | Specification |
| Internal Dimension (W*D*H) | 760*500*600mm |
| External Dimension (W*D*H) | 1350*1200*1750mm |
| Chamber humidity range | 55%～90% R.H |
| Black panel temperature | 45℃~90℃, adjustable |
| Temperature uniformity | ≤±3℃ |
| Filter | Daylight filter |
| Light source | Air cooled long arc xenon lamp |
| Xenon lamp power | 1.8KW * 3pcs = 5.4KW |
| Heating | Nickel-chromium alloy electric heater |
| Humidification power | Stainless steel surface evaporative humidifier |
| Sample holder | Stainless steel, 1pc |
| Illumination time | 1~999 hours, adjustable |
| Lamp wavelength | 290~800nm |
| Irradiance range | 500~1120W/m2 |
|
Distance from sample |
250~300mm |
| Inside chamber material | SUS 304 # Stainless Steel, anti-rust, easy to clean |
| Outside chamber material | Cold-rolled steel with spray |
| Insulation materials | Supper fine glass fiber |
| Temperature sensor | PT100 |
| Air circulation system | Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity |
| Water spray system | Water spray time 999 minutes settable |
| Control system | LCD programmable controller, auto display irradiance, capacity: 100 groups program, 99 cycles. |
| Communication port | RS232 to connect computer for output |
| Standard accessories | Fuse x 3pcs; xenon lamp x 3pcs; humidification cotton x 5pcs; English user manual x 1pc; operation video x 1pc |

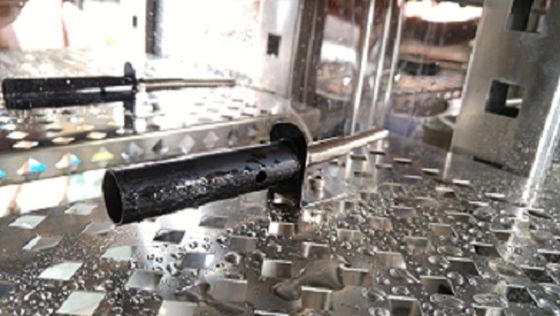

The images of this machine
