Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion

China Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion supplier
Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion supplier Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion supplier Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion supplier Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion supplier Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion supplier

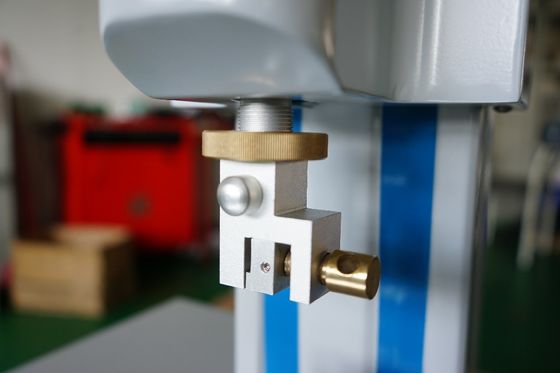

Large Image :  Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B609-D
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Force Range: 2~25kg Load Cell: Germany Brand Load Cell For High Accuracy
Control System: LCD / PC With Windows 7 System Stroke: 300 Mm (Without Clamps)
Motor: Servo Motor Force Reading: Kgf, Ibf, N, KN, T Etc


Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion



Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion


Download the Standard

Tensile Testing Machine Standards Sharing.pdf



GENERL SPECIFICATIONS

Packaging Dimensions: (W*D*H) 630*630*1400mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 55kg

HS Code: 9024800000


STANDARD FEATURES

Item Description
Force range 2~25kg
Load cell Germany brand load cell for high accuracy
Control system LCD / PC with windows 7 system
Stroke 300 mm (Without clamps)
Motor Servo motor
Force reading kgf, Ibf, N, KN, T etc
Load cell Resolution 1/250,000
Load Precision within ±0.5%
Test speed 0.1~300mm/min (adjustable)
Machine size 520 * 515 *1250 mm (L*W*H))
Weight 30 kg
Power 1 phase, AC, 220V
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat



APPLICATIONS

Deformation under defined load: Test deformation under defined load of tested sample

Load under defined deformation: Test load under defined deformation of tested sample

Software can issue report with results for peel strength,

This machine only focuse on peel strength.

Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion  Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion



Our company Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Single Column Universal Material Electronic Tensile force Testing Machines for Peel Adhesion





Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con



3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
