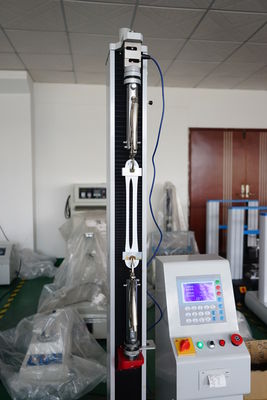

Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester

China Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester supplier
Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester supplier Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester supplier Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester supplier Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester supplier Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester supplier

Large Image :  Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B617
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Accuracy: ±0.5% Capacity: 5, 10, 20, 25, 50, 100, 200kg
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Power: Electronic Resolution: 1/250000
Sensor: Celtron Load Cell Test Speed: 0.1-500mm/min (adjustable )
Type: Universal Tensile Testing Machine

Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester





APPLICATIONS

  1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Main Technical Parameter

Items

Specification

Sensor

Celtron load cell

Capacity

5, 10, 20, 25, 50, 100, 200kg

Unit Switchover

G, KG, N, LB

Display Device

LCD or PC

Resolution

1/250,000

Accuracy

±0.5%

Max. Stroke

1000mm (including fixture)

Test Speed

0.1-500mm/min (adjustable )

Motor

Panasonic Servo Motor

Screw

High Precise Ball Screw

Elongation Accuracy

0.001mm

Power

1∮, AC220V, 50HZ

Weight

Approx.75kg

Accessories

One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



Product Features

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation

3. Data transmission: RS232

4. Displacement resolution: 0.001mm

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.



The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester

After-service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester

Packaging & Shipping:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

Single Column Tensile Strength Test Machine 2KN , Computer Servo Electric Tensile Tester
