Anti Yellowing Electrical Testing Equipment With Room Temperature Lamp Type

Anti Yellowing Electrical Testing Equipment With Room Temperature Lamp Type
Anti Yellowing Electrical Testing Equipment With Room Temperature Lamp Type Anti Yellowing Electrical Testing Equipment With Room Temperature Lamp Type Anti Yellowing Electrical Testing Equipment With Room Temperature Lamp Type

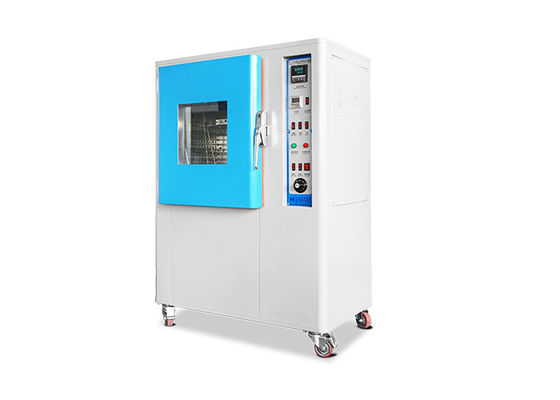

Large Image :  Anti Yellowing Electrical Testing Equipment With Room Temperature Lamp Type

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E704
Power: Electric
Port: Shenzhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Inner Box Size: 50cm×50cm×60cm(L*W*H) Power: Electronic
Product Name: Accelerated Weathering Tester Temperature Range: Room Temperature ~ 200 ℃
Testing Distance: 150-250mm Design Criteria: GB
High Light:

accelerated aging chamber

,

aging test machine



Anti Yellowing Electrical Testing Equipment With Room Temperature Lamp Type





Product Description:



Anti-yellowing aging test chamber is suitable for simulating sunlight ultraviolet radiation and heat, sample in the machine by ultraviolet radiation and temperature effect, after a period of time, observe the degree of yellowing of the specimen, Anti-yellowing aging can be used as a reference to stain gray, determine the level of the yellow change, test time according to the manufacturer's agreement. Machine accessories complete, can be used as a basic yellowing test,Anti-yellowing aging chamber can also be used when aging testing machines and ovens, showing a multi-purpose function of the machine.
Anti-yellowing aging test chamber can do anti - yellowing aging and aging for materials.


Advantage:



1. Temperature Range—— Room temperature ~ 200 ℃

2. Control Mode—— Automatic Calculation Controller

3. Time memory—— 0-999 hours, Power Failure Memory Type, with Buzzer

4. Sample holder rotation speed—— Diameter 45cm, 10±2 roll/min

5. UV light source—— 300W UV lamp
6. The an-ti yellow aging chamber can do two tests: anti-yellowing and aging.

7. Aging chamber factory quote
8. Global after sales techincal services

anti yellow aging chamber









































































Applications Details:



Ø The machine can do two tests: anti-yellowing and aging.

Ø Anti-yellowing: to stimulate the environment condition, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50’C for 9 hours, in theory as exposed to atmosphere for 6 months.

Ø Aging: it can promote the increase of sulfur rubber deterioration so as to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70℃, in theory as exposed to the atmosphere for 6 months.


Application Industry:


1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...



Standard Features:



Internal chamber size(W*D*H) 50cm*50cm*60cm
External chamber size(W*D*H) 93cm*57cm*131cm
Temperature Range Room temperature~200℃
Control Mode Automatic Calculation Controller
Temperature display accuracy 0.1℃
Control accuracy ±3℃
Distribution accuracy ±1℃ (ambient ~ 100℃)
Time memory 0-999 hours, Power Failure Memory Type, with Buzzer
Sample holder rotation speed Diameter 45cm, 10±2 roll/min
UV light source 300W UV lamp
Heating method Hot air circulation
Chamber material Internal: Stainless Steel SUS304;
External Steel plate with baking varnish



yellow aging chamber
