0.7-4.5X Cookware Testing Apparatus For Torque Resistance , VML-CNC

Brand Name:	HAIDA
Model Number:	HD-M001
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Product Name:

Cookware Testing Machine

Power:

Electronic

Motor:

High-speed 3-axis CNC Driven Motor

Zoom Lens:

Pomeas 0.7～4.5X Zoom Lens

Supply Ability:

300 Sets per Month Haida

Highlight:

cookware testing machines

fatigue testing equipment

Product Description

0.7-4.5X Cookware Testing Apparatus For Torque Resistance , VML-CNC

DESIGN STANDARD: BS EN12983-1

The Product Description:

Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.

STANDARD PARAMETERS:

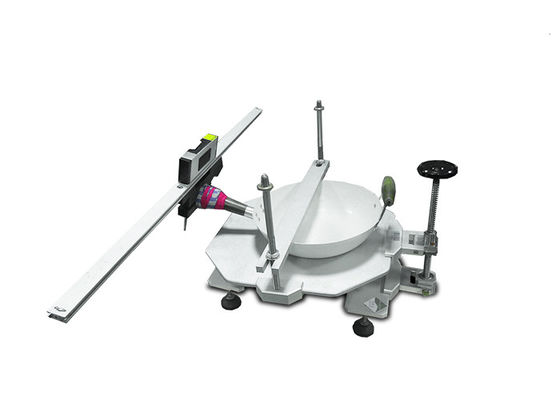

A lever, 1 m long of weight 1 Kg ± 0.1 Kg including the attachment and the pointer, capable of being affixed to the handle through clamping fixture.(Resin epoxy provide for the molding of handle shape in order to affixed the handle in such a way that its centre coincides with the centre of the handle and there is no movement between the lever and the handle.
1 Kg test mass included.
A hinged board of easy adjustment, made of aluminum provide to coup with different handle angle.
Scale display: digital .
Scale resolution = 1 degree.

VML-CNC Characteristics:

● Modern shape design;
● Fashionable auto-painting-craftwork;
● Steady granite base;
● Stable imported V-shape guide;
● Precise metal and glass worktable;
● High-speed 3-axis CNC driven motor;
● Adjustable USB 4division ring LED illumination;
● Advanced Pomeas 0.7～4.5X Zoom lens;
● Wonderful SONY 1/2`` Color CCD camera;
● Powerful 2.5D measuring software QuickMeasuring 4.1 version.

VML-CNC Specifications:

Mode	VML-6060CNC	VML-1080CNC	VML-1210CNC
Order#	52-661	523-181	523-121
Metal table size	800x800mm	1140x1000mm	1140x1360mm
Glass table size	650x650mm	1050x850mm	1050x1250mm
Travel: X,Y	600x600mm	1000x800mm	1200x1000mm
Z-axis Travel	200mm	200mm	200mm
Resolution	0.0005mm	0.0005mm	0.0005mm
X,Y-axis accuracy	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um
Measuring software	QM4.1	QM4.1	QM4.1

VML-CNC Standard Delivery:

Standard Delivery	Order	Standard Delivery	Order	Standard Delivery	Order
Measuring Software	QM4.1	CCD Camera MC3	484-123	Pomeas detent zoom lens	421-101
Calibration Block	581-801	Capture Card 7130	527-130	LED Lightsource	425-400
Scale Transfer U3	564-301	Power,AV,RS232 Cable		Dell PC host

VML-CNC Optional Accessories:

Optional Accessories	Order	Optional Accessories	Order	Optional Accessories	Order
Pomeas Coaxial zoom lens	421*001	Pomeas motor zoom lens	421-001	Operation Joystick	581-542
Working Cupboard ST03	581-631
