|Product Name:||Plastic Testing Equipment||Power:||Electronic|
|Temperature Control Range:||-300 ℃ Ambient Temperature||Temperature Indication Error:||0.1 ℃|
Functions and applications :
This Thermal Deformation Plastic Testing Machine , PC Vicat Softening Point Tester is mainly applied to thermal deformation temperature and Vicat softening point temperature determination of plastic , hard rubber , nylon , electrical insulating material , fibre reinforced composite , high strength thermosetting laminated material and other nonmetal materials .
Technical parameters :
Temperature control range : -300 ℃ ambient temperature
Heating rate : ( 120 ± 10 ) ℃ / h ( 12 ± 1 ) ℃ / 6min ( 50 ± 5 ) ℃ / h ( 5 ± 0 . 5 ) ℃ / 6min
Temperature indication error : 0 . 1 ℃
Temperature control accuracy : ± 0 . 5 ℃
Maximum deformation indication error : ± 0 . 01mm ,
Deformation Measurement range : 0-1 . 5 mm
Sample holder Count : 3
Quality rods and pallet load : 68g
Heating medium : methyl silicone oil ( kinematic viscosity of 200 centistokes usually selected ) or transformer oil
Cooling : natural cooling more than 150 , 150 or less water cooling or natural cooling .
Heating power : 4kw
Instrument Size : 540mm × 520mm × 970mmConfiguration :
1 ) main machine : 1 set
2 ) test frame : 3
3 ) thermal deformation pressure head : 3
4 ) vicat pressure needle : 3
5 ) displacement sensor : 3
6 ) temperature sensor : 1
7 ) computer with good brand : 1 set ( 512M DDR/80G SATA/no floppy drive /DVD/
Integration card /integration video /antibiosis waterproof keyboard /photoelectricity antibiosis mouse // WIN XP HOME Chinese version , 15 LCD )
8 ) color printer with good brand : 1 set
9 ) test soft based on the WIN982000XP Chinese version : 1 set
10 ) power line : 1 stick
11 ) signal line : 1 stick
12 ) weights : 1 set
It has the advantages of high intelligence , easy operation and high accuracy and it is widely applied to universities and colleges , R&D institution and quality supervision and inspection unit . This machine is CE certified and has a good sale in many countries in Europe and America .

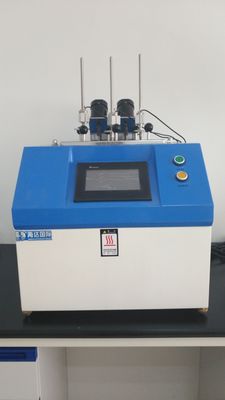

Thermal Deformation Plastic Testing Machine , PC Vicat Softening Point Tester
Working standard :
Meet the standard requirements such as GB/T 1633 , GB/T 8802 , GB/T 1634 , ISO 2507 , ISO 75 , ISO 306 , ASTMD 1525 , ASTMD 648and so on .
Product performance :
1 ) It adopts PC to control , displacement sensor to measure deformation and draw rear time curve ;
2 ) Do the second treatment for test data on the PC directly and test data can be leaded in the OFFICE soft to edit and typeset ;
3 ) The test frame is made of invar and its deformation is zero ;
4 ) The tank is designed small and its cooling rate is rapid ,
which save test cost ;
5 ) Configure full set of weights according to national standard and international standard .
6 ) Combining the tank with stir motor to control temperature uniformity ;
7 ) The tank is installed with cooling water pipe , which speed up cooling rate ;
8 ) The software developed by our company support Windows98/2000/X operation system . The system soft can be installed on the all PC to use and there is Chinese and English interface . The users can add , revise and delete test report according to their needs ;
9 ) When set parameters , fill in the parameters according to soft standard format and set the upper limit temperature ( less than test temperature 50℃ ) ;
10 ) When calibrate deformation , set the parameters and then enter into deformation zero setting interface . The test begins .
11 ) The deformation and temperature measurement calibration can be done in the soft system without operating hardware equipment ;
12 ) Users can add and delete the three curves in the test according to their needs , choose color freely and split the curves ;
13 ) For observing temperature , users can check temperature monitoring dialog box to observe the temperature in the test process ;
14 ) This machine has functions of warming curve real time display in the test process and temperature deformation curve real time drawing and measuring result automatic identification . It adopts database technique for test data storage ;
15 ) It has function of constant temperature , which is applied to high frequency test and increase test efficiency ;
16 ) It can do the test data treatment , test result query , test parameters correction and test report printing ;
17 ) Test data can be checked easily and rapidly . Inputting temperature can check related deformation including temperature deformation ;
18 ) Test result can be leaded in the Word edit and send it on the internet ;
19 ) The three test frames can be used in the test with all order .
Weight ( g )
60 ( load stem )
Note : Users should provide cooling water and ventilation and smoke venting equipment .
