GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine

China GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine supplier
GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine supplier GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine supplier GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine supplier GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine supplier

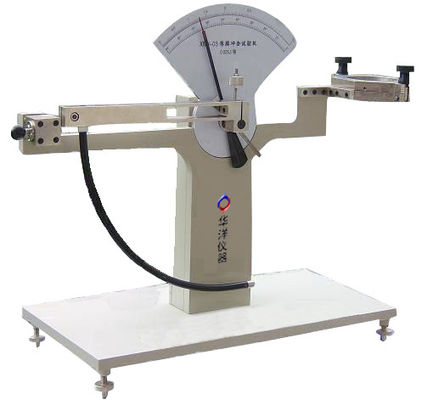

Large Image :  GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-R603
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Product Name: Plastic Testing Equipment Power: Electronic
Maximum Impact Energy: 3J Sample Holder Hole Diameter: Φ89, Φ60, Φ50;
Test Size: 100 × 100mm Swing Range: R300mm

GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine





1.Film Impact Tester Products:



Film Impact Tester meet GB8809 standard requirements for the determination of plastics, rubber and other non-metallic and metallic foil film material impact toughness. Fan can be widely used in industrial and mining enterprises, scientific research institutes, quality inspection department of plastic, rubber, metal foils and other materials pendulum impact test fields. Film Impact Tester is computer-controlled, automatic operation, automatic memory test data, automatically modify data, automatically printing.

Rationale: Film Impact Tester through hemispherical punch at a certain speed, impact and through the membrane sample, measuring the energy consumption of the punch, thus the energy evaluation thin film sample anti-pendulum impact energy.



GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine





Application:



rubber Film Izod Impact Testing Machine can be widely used in industrial and mining enterprises, research institutes, quality inspection department of the pendulum plastic material, rubber, metal foil, etc. art impact test





2.The main technical indicators:





Maximum impact energy 3J
Sample holder hole diameter Φ89, Φ60, Φ50
Test Size 100 × 100mm
Swing range R300mm
Punch size Φ25.4mm, Φ12.7mm
swing elevation 90 °



Sample working conditions: the sample at a temperature of 23 ± 2 ℃, relative humidity 45% to 55% of the environment for at least 4 hours, and tested in this environment.





3.Test method:



1. GB6672 measurement test in accordance with the thickness measured at the center of all samples in the point of 10 the arithmetic mean of the test samples.

2. According to the test of pendulum impact resistance required energy use punch, so that reading the full range of 10% - 90%

3. Instrument used to calibrate the instrument according to the rules.

4 flattened into the sample holder in the clamp, the sample should not be wrinkled or four weeks excessive tension phenomenon. Should make the 10 sample surface by the impact unanimously.

5. The pendulum linked to the release device, the computer button to start the test, the pendulum impact test, the same procedure for the 10 test, after the test automatically calculate the arithmetic mean of 10 samples.







4.Our company



Introduction:



HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.





company



GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine





5.Our certification



GB8809 Plastic Testing Machine , rubber Film Izod Impact Testing Machine







6.After-service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer;



Packaging & Shipping:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
