Electronic Carton Compression Tester , Computer Servo Box Compressive Tester

Brand Name:	HAIDA
Model Number:	HD-A505S-1500
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Product Name:

Packaging Testing Equipment

Power:

Electronic

Capacity:

2 T ,5T

Load Resolution:

1/100,000

Load Accuracy:

≤0.5%

Standard:

TAPPI-T804; JIS-20212; GB4857.3.4; ASTM-D642

Supply Ability:

300 Sets per Month Haida

Highlight:

packaging testing instruments

packaging drop test equipment

Product Description

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester

Specifications

Computer Servo Box Compressive Tester
1.High quality with reasonable price
2.One year free aftersale service
3.Easy operation

About the machine:

Computer Servo Box Compressive Tester is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.

Design criteria:

TAPPI-T804,JIS-20212,GB4857.3.4,

ASTM-D642, QB/T1048, BS EN ISO 12048,

GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,

GB/T4857.4

Specifications:

Computer Servo Box Compressive Tester
Model	HD-A505S-1500
Unit (switchable)	Kg, Lb, N
Capacity (optional)	2 T ,5T
Load Resolution	1/100,000
Stroke (exclude the grips)	400 mm
Load Accuracy	≤0.5%
Test Space (L×W×H)	1500×1500×1500mm
Speed of Compression	10 ± 3 mm/min
Operation Mode	PC
Report Items	Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure	AC Frequency Conversion Motor ( Taiwan); Imported screw rod ;4 sensors; LED display
Dimension (L×W×H)	2370×1500×2100mm (can be custom made)
Power	1ø, 220v/ 50Hz
Weight	Approx. 850kg
Safety Devices	Overload protection, overvoltage protection & limited position protection device
Standard	TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

Features of Computer Servo Box Compressive Tester :

Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
It can do test of compression, bending, pressure holding & fatigue.

With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

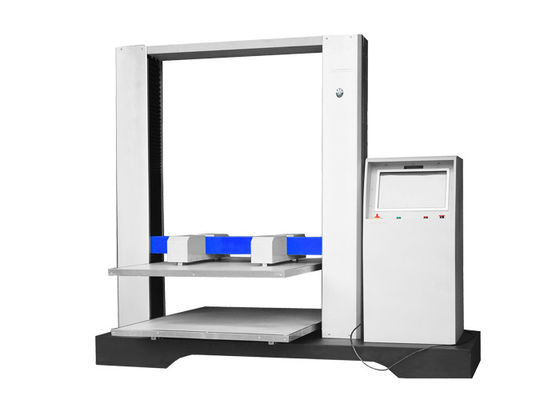

The image of Computer Servo Box Compressive Tester

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester 0
