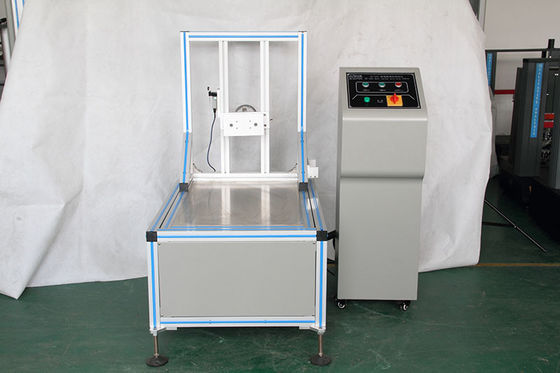

Inclined Plane Friction Package Testing Equipment With Power Driven Control

Inclined Plane Friction Package Testing Equipment With Power Driven Control
Inclined Plane Friction Package Testing Equipment With Power Driven Control Inclined Plane Friction Package Testing Equipment With Power Driven Control

Large Image :  Inclined Plane Friction Package Testing Equipment With Power Driven Control

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A537
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Product Name: Packaging Testing Instruments Power: Electronic
Design Criteria: DIN 53119-2-1997 TAPPI T-815 Accuracy: ±0.1°
Testing Speed: 2°/ Second Drive Mode: Power-driven
High Light:

packaging testing instruments

,

paper and packaging material testing instruments

Inclined Plane Friction Package Testing Equipment With Power Driven Control



Specifications



Corrugated Paperboard Inclined Plane Friction Tester
High control accuracy
adopt with advanced single screw column mechanical



Corrugated Paperboard Inclined Plane Friction Tester


Corrugated Paperboard Inclined Plane Friction Tester   is used to test the sliding resistance of cartons. Beer carton and other packages are easy to slid with small coefficient of surface friction, which can be improved by testing of Carton Sliding Angle Tester. It applies to decrease the damage of corrugated and fibre packages during production, which is specially good for testing beer carton, drink packages and so on.



Corrugated Paperboard Inclined Plane Friction Tester Features:

High control accuracy,

adopt with advanced single screw column mechanical structure,

Power-driven control and LCD display.



Design criteria: DIN 53119-2-1997 TAPPI T-815



Corrugated Paperboard Inclined Plane Friction Tester Technical parameter:



Angle display method

LCD

Accuracy

±0.1°

Testing Angle

0-40°

Testing speed

2°/ second

Drive mode

power-driven

Lifting method

Threaded screw drives the lift of holder

Plate size

600×500mm

Max. Load

50KG

Weight

approx. 80KG

Machine size

750×550×550mm

Motor

0.4kw servo



Corrugated Paperboard Inclined Plane Friction Tester can not be used in below conditions:

1, Vibration and unstable places;

2, Under direct sunlight;

3, High temperature, dust and humidity;

4, With good alternating current and safety usage;

5, Strictly prohibited to use strong solvents (such as: benzene nitro kind of oil) clean machine;

6, Can't inject water and sundries into machine to avoid damage and electric shock;

7, Only can be repaired and adjusted by companies with approval of national metrology.



Corrugated Paperboard Inclined Plane Friction Tester  Maintenance:

1, Clean: Clean of machine with cotton fabric before and after usage each time;

2, Anti-rust: Spray anti-rust oil on metal unit of the machine each week (Clean in 2 hours after spraying);

3, Lubricating oil: Add lubricating oilto rotating parts (screw) of machine every month;

4, Maintenance: Routine check the button of control panel.



Inclined Plane Friction Package Testing Equipment With Power Driven Control 0Inclined Plane Friction Package Testing Equipment With Power Driven Control 1
