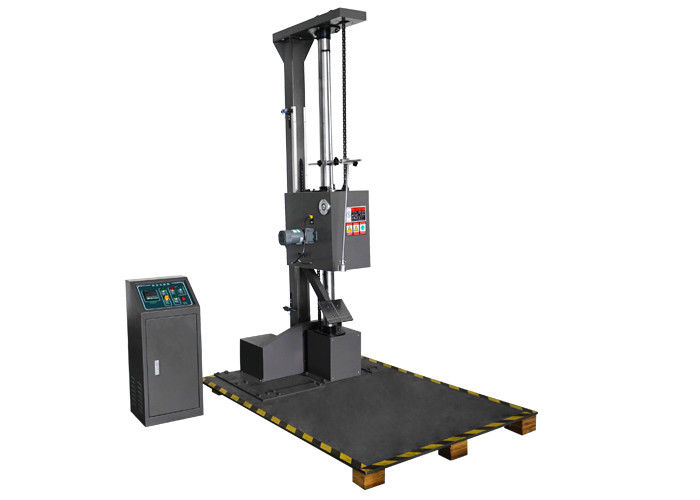

Single Column Digital Drop Package Testing Equipment With LCD Touch Screen Display

China Single Column Digital Drop Package Testing Equipment With LCD Touch Screen Display supplier
Single Column Digital Drop Package Testing Equipment With LCD Touch Screen Display supplier Single Column Digital Drop Package Testing Equipment With LCD Touch Screen Display supplier Single Column Digital Drop Package Testing Equipment With LCD Touch Screen Display supplier

Large Image :  Single Column Digital Drop Package Testing Equipment With LCD Touch Screen Display

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A520
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Product Name: Packaging Testing Instruments Power: Electronic
Design Criteria: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276 Display Method: Digital Display
Maximum Weight Of The Package: 60kg Dropping Deviation: ±10mm

Single Column Digital Drop Package Testing Equipment With LCD Touch Screen Display



Specifications

Electronic Drop Tester
1.Test the damage degree when the package is dropped
2.CE certificated
3.Reasonable price



1. Function



Electronic Drop Tester Exporter  is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.



2. The comparison table of the package weight and dropping height:

Electronic Drop Tester Exporter



Weight

Height

No less than

Less than

Free-drop

Lbs

Kg

Lbs

Kg

Inch

mm

0

0

21

10

30

760

21

10

41

19

24

610

41

19

61

28

18

460

61

28

100

45

12

310

100

45

150

68

8

200

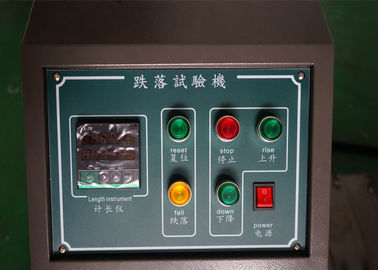

3.  Operation of control chamber



Electronic Drop Tester Exporter

A. It adopts electromagnet control system to control the dropping swing

B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function

C. The testing height can be digital set up.

Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276



4. The Technical parameters:



Electronic Drop Tester Exporter
Dropping height: 300mm-1500mm

Display method: digital display

Maximum weight of the package: 60kg
Maximum size of the package: (L×W×H)1000×700×1000mm
Size of the dropping panel: (L×W)1700×1400mm
Size of the swing: 200×150×8mm
Dropping deviation: ±10mm
Deviation of dropping horizon: less than 1°
Outside size: (L×W×H)1700×1200×2500mm
Chamber size: (L×W×H)350×350×1100mm
Weight: 550kg
Power: AC380V,50Hz



5. Configuration



Electronic Drop Tester Exporter

  1. Outside material: advanced paint coat
  2. Display: LCD display
  3. Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
  4. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
  5. Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs
  6. Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece

Single Column Digital Drop Package Testing Equipment With LCD Touch Screen Display



The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
