Product Details:
Payment & Shipping Terms:
|
| Product Name: | Paper Testing Machine | Power: | Electronic |
|---|---|---|---|
| Display: | LCD | Capacity (Optional): | High Pressure 5~45Kg/ Cm2 (for Paperboard) |
| Unit: | Kpa, Psi, Kg/cm^2 | Accuracy: | ± 0.5% |
| High Light: | paper testing instruments,paper testing machine |
||
Electronic Carton Bursting Tester , Paper Board Burst Equipment , paper testing
Specifications

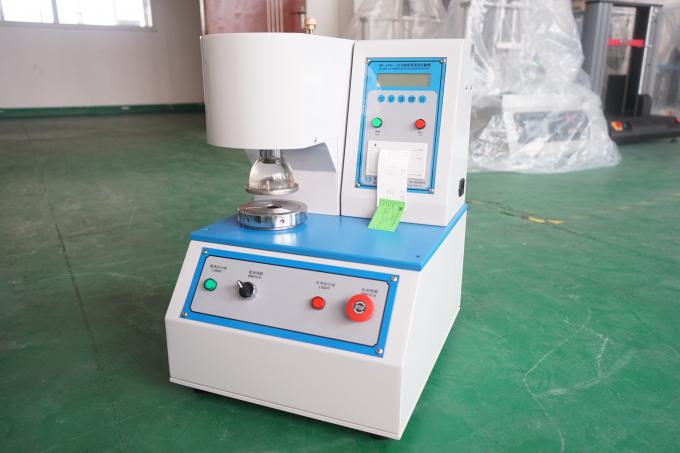

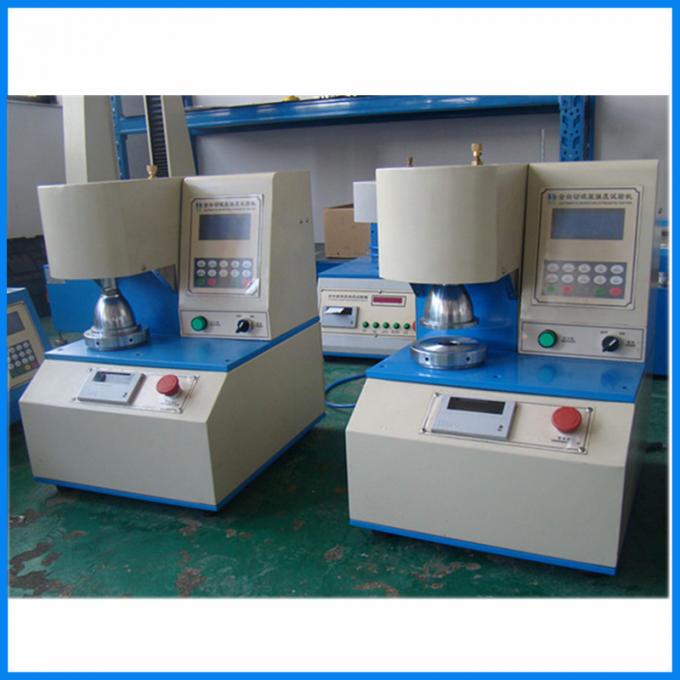

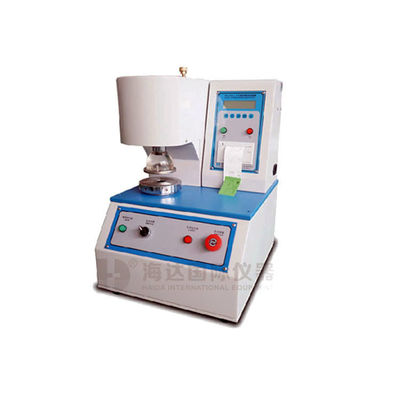

Burst Strength Tester
Advantage:
1. LCD Display
2. print max. min. average value,
3.coeficient variation, burst index
Product view:
Burst Strength Tester widely used in packaging materials, mainly used for the determination of a variety of cardboard and single and multi-layer corrugated cardboard. As long as the material into the material, that is, automatic detection, automatic test, print, the instrument with digital display and can automatically print test results and data processing
The parameters
| Capacity | High Pressure 5~45Kg/ cm2 (for paperboard) |
| Unit | Pa, kPa, kgf |
| Accuracy | ≤0.5% |
| Sensing method | Pressure Transmitter |
| Indicating method | Digital display |
| Operation method | Automatic |
| Ring Material | Stainless Steel SUS304 |
| Clamping ring diameter | 31.5 ± 0.1 mm |
| Pump flow | 170 ± 15 ml/min |
| Dimension (L×W×H) | 480×400×580 mm |
| Weight | Approx. 70kg |
| Accessories | One piece high pressure rubber film, one piece wrench, 10 pieces high pressure correction sheet, one bottle silicon oil, one piece English user manual |
Advantages:
can print the max. min. and average value, burst index, coefficient of variation, the amount of test groups.
Design standards:
JIS-L1004, L1018, L1031, K6328, P8131, P8112 and ASTM-D2210, TAPPIT403, ISO2759-2001, GB / T1539
Paperboard Burst Strength Testers
