Product Details:
Payment & Shipping Terms:
|
| Counter: | 0-99999 Times | Power: | Electronic |
|---|---|---|---|
| Product Name: | Furniture Testing Equipment | Use: | Cornell Mattress Durability |
| Motor Power: | 2KW DC | Display Accuracy: | 0.001kgf |
| High Light: | fatigue testing equipment,impact testing machine |
||

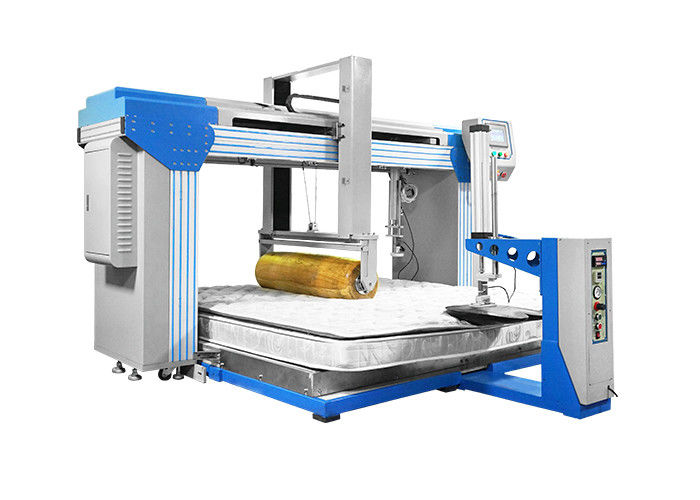

Impact Furniture Testing Machines , Mattress Fatigue Testing Equipment EN 1957
1. The usage
Cornell Mattress Durability Tester is designed and manufactured for testing and evaluating of Innerspring and Box spring mattres
2. Design criteria:
EN 1957
3. Test objectives:
Use specific block impact on the mattress over and over again, to assess their durability, and the fastness of mattress spring .
4. Mattress Durability Tester specification:
| 1.Imposed the pressure on mattress by a transducer, pressure range to 300KG | |
| 2. Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N | |
| 3. Pusher travel speed adjustable, about 160 weeks times per minute | |
| 4. A computer program under pressure transmitter and location of the transmitter of the data, make a complete test report. | |
| 5. Suitable maximum specimen | 2.3M X 2.5M |
| 6. Display Accuracy | 0.001kgf |
| 7. Deformation precision | 0.001mm |
| 8. Impact height | 0-300mm adjustable |
| 9. Counter range | 0-99999 times |
| 10. Motor power | 2KW DC |
5. The main components:
| · Motor | · Taiwan's Teco Motor with reducer of Italy. |
| · Speed adjustment | · Taiwan's "Ed Force" drive |
| · Guide bearing | · Import from Japan. |
| · Rack | · aluminum body and steel |
| · Control elements | · Imported. |
