Automatic Paperboard Ring Crush and Edge Compressive Testing Machine

Automatic Paperboard Ring Crush and Edge Compressive Testing Machine
Automatic Paperboard Ring Crush and Edge Compressive Testing Machine Automatic Paperboard Ring Crush and Edge Compressive Testing Machine Automatic Paperboard Ring Crush and Edge Compressive Testing Machine Automatic Paperboard Ring Crush and Edge Compressive Testing Machine

Large Image :  Automatic Paperboard Ring Crush and Edge Compressive Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A513
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Product Name: Paper Testing Machine Power: Electronic
Design Criteria: IS02759,GB/T1539,QB/T1057,ASTMD3786,GB/T6564,GB/T465 Capacity (Optional): 10, 20, 50, 100, 200 Kg
Resolution: 1/250,000 Precision: < 0.25%
High Light:

paper testing instruments

,

paper testing machine

Automatic Paperboard Ring Crush and Edge Compressive Testing Machine



Detailed Product Description:

Ring Crush and Edge Compressive Tester

1.Computer Servo .
2.Multi-function .
3.Ring crush & edge compressive.



The usage:

Crushing Strength Testing Instrument is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. Record the value of force,automatically keep the maximum value of fracture strength, decomposition degrees has improved 100 times than the needle display type. This equipment is important to control the quality product.



Corresponding standard:

IS02759,GB/T1539,QB/T1057,ASTMD3786,GB/T6564,GB/T465



Applicable industry:

It applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.



Specifications:

Capacity  (Optional)

10, 20, 50, 100, 200 kg

Resolution

1/250,000

Precision

< 0.25%

Display Mode

LED

Platen

100×100 mm or depending on the diameter of the flat crush sample

Compressed Space

500mm

Pplaten Parallelism

± 0.05 mm

Ring Crush Sample

152×12.7 mm

Edge Crush Sample

25×100 mm

Test Speed

12.7 mm/min

Dimension (L×W×H)

790×510×1060 mm

Weight

Approx. 51 kg

Power

1ø, AC220V, 1.5A

Standard

TAPPI-T472; T808, T810, T811, T818;
JIS-P8126;
GBT2679.6, GBT2679.8, GBT2679.17



The pictures:

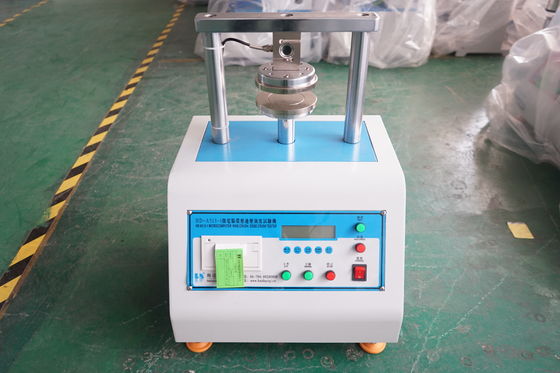

The machine  in warehouse

 Automatic Paperboard Ring Crush and Edge Compressive Testing Machine 0Automatic Paperboard Ring Crush and Edge Compressive Testing Machine 1
