Paper and Paperboard Bursting Testing Equipment , Paperboard Bursting Testing Equipment , Paper Testing Equipments
Detailed Product Description
1.Product Description:
This series of products using digital display pressure, test material broken down, automatically retain maximum rupture strength value, indicating approach to digital display pressure, capacity is 0-100kgf/cm^2.They can be widely applicable to packaging materials, including the general paper, corrugated paper, toilet paper, wrapping paper, etc. Used in leather, cloth, packaging film etc, can effective for product quality monitoring.
2. Standards:
ISO 2759 GB/T 1539 ISO 2758 GB/T 454
3.The main technical parameters:
|
Model |
HD-A504-2 |
|
Capacity (Optional) |
High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
|
Unit (sitchable) |
Kpa, psi, kg/cm^2 |
|
Accuracy |
± 0.5% |
|
Pressure Range |
250~5600kpa |
|
Speed of Compression |
High Pressure 170± 10ml/min |
|
Specimen Clamping Force |
>690kpa |
|
Oil |
85% Glycerin; 15% Distilled Water |
|
Sensing method |
Pressure Transmitter |
|
Indicating Method |
Digital |
|
Display |
LCD |
|
Material of the Ring |
Stainless Steel SUS304 |
|
Opening in Upper Clamp |
31.5 ± 0.05 mm Diameter |
|
Opening in Lower Clamp |
31.5 ± 0.05 mm Diameter |
|
Motor |
Anti-vibration Motor 1/4 HP |
|
Operation Method |
Manual |
|
Dimension (L×W×H) |
445*425*525 mm |
|
Weight |
Approx. 70 kg |
|
Power |
AC220± 10%, 50 Hz |
|
Power Capacity |
120W |
|
Standard Configuration |
Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
|
Optional Configuration |
Printer |

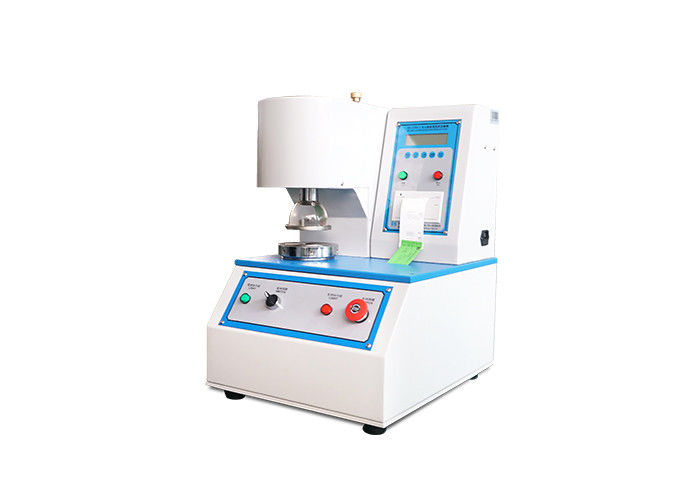

4.The picture of the machine:
