Electronic PC Carton Compression Tester , 15KN 45KN Box Compressive Tester

China Electronic PC Carton Compression Tester , 15KN 45KN Box Compressive Tester supplier
Electronic PC Carton Compression Tester , 15KN 45KN Box Compressive Tester supplier Electronic PC Carton Compression Tester , 15KN 45KN Box Compressive Tester supplier

Large Image :  Electronic PC Carton Compression Tester , 15KN 45KN Box Compressive Tester

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A502S-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Product Name: Packaging Testing Equipment Power: Electronic
Capacity: 5000KG Load Resolution: 1/100,000
Operation Mode: PC Standard: TAPPI-T804; JIS-20212; GB4857.3.4; ASTM-D642

Electronic PC Carton Compression Tester , 15KN 45KN Box Compressive Tester


Specifications
1.High quality with reasonable price
2.One year free aftersale service
3.Easy operation





1.About the machine:
Electronic PC Carton Compression Tester have a large test zone ,can test difference package box size (1300×1500×1300mm effect test zone). special for big product like Televisions, refrigerators, washing machines and other industries, also can used for small sizes pakage box .

Computer Servo Box Compressive Tester is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.



Application industry:

Home appliances, computers, mobile phones, electronic products, washing machines, shoes, food, medicine, furniture and other industries need to carton packaging, such as corrugated box packaging, honeycomb boxes and so on. At the same time can also be used in plastic barrels (edible oil, mineral water), paper barrels, cartons, paper cans, container barrels (IBC barrels)



2.Design criteria:


TAPPI-T804,JIS-20212,GB4857.3.4,
ASTM-D642, QB/T1048, BS EN ISO 12048,
GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,
GB/T4857.4




3.Specifications:


ItemDescription
Max. Force5000 kg (50KN)
Load cell1 load cell for highest accuracy
Control systemWindows 7, RS-232 interface
MotorPanasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force readingkgf, Ibf, N, KN, T etc
Load cell Resolution1/250,000
Load Precisionwithin ±0.25%
Parallelism of PlatensParallel within ±2.5mm
Effective test area1300×1500×1300mm
Test speed10 ±3mm/min (0.01~200mm/min adjustable)
SoftwareTM 2101
Data displayLoad, displacement, speed, loading rate and elapsed time
Safety features

E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat



4.Features of  Computer Servo Box Compressive Tester :

Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
 It can do test of compression, bending, pressure holding & fatigue.

With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

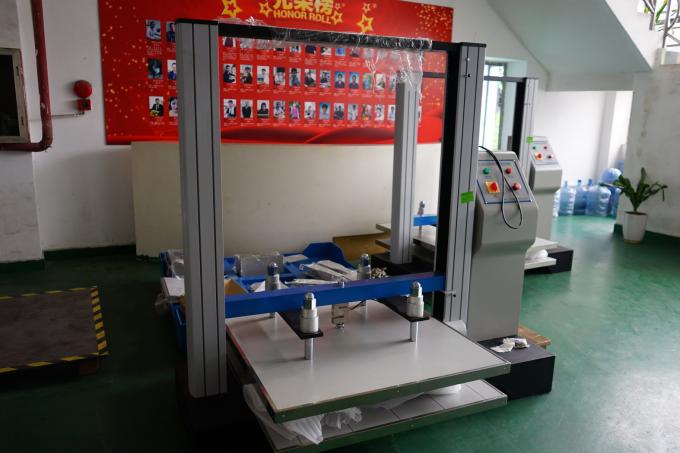

5.The image of Computer Servo Box Compressive Tester

pc package compression tester



The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
