UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber

China UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber supplier
UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber supplier UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber supplier UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber supplier

Large Image :  UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E802

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Controller: Korean TEMI 880 Programmable Controller Material: SUS#304 Stainless Steel
Power: Electronic Product Name: Uv Test Chamber
Temperature Control: PID SSR Control Voltage: 220V/50Hz /±10% 5KW

           UV Accelerated Weathering Tester , Touch Screen Rubber UV Aging Test Chamber





1. Product description



Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.



UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber
Application industry (not limited to the following):
1. Paint ink paint, resin, plastic
2. Printing and packaging, aluminum, adhesives
3. Motorcycle industry, cosmetics,
4. Metal, electronics, electroplating, medicine and so on.





Applications function:
1.Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2.To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3.Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.




Test standard(inculding but not limited to... ):
Compliance with ASTM G53-77 specifications GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.





2. Technical parameters:

Accelerated Weather UV test machine



Item Specification
Outside dimension 1300W×500D×1460Hmm
Chamber material SUS#304 stainless steel
Temperature range RT~70℃
Temperature fluctuation ±2℃
Temperature control PID SSR control
Humidity range: ≥95%RH
Controller Programmable controller, LCD touch screen
Control mode Balance temperature humidity control (BTHC)
Test cycle setting Exposure, condensation and water spray test cycle is programmable
Lamp power 40W/Piece
Distance from sample to lamp 50±2mm
Centre distance between the lamp 70mm
Irradiance 0.45~1.0W/m2 (optional)
UV lamps Imported Atlas UV-B: 280-315nm (8pcs, 1600h lifetime)
Standard Specimen Size 75×290mm (24pcs) or 75x150mm (48pcs), max. thickness 5mm
Testing time 0~999H, adjustable
Protection system

Overload short circuit protection

Over temperature protection

Water lacking protection

Earth leakage protection

Auto shut off protection







3. Chamber Structure:





Accelerated Weather UV test machine



The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.

The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.





4. Control System:



Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.





5. Test Specimen Mounting:





 Accelerated Weather UV test machine



The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.





6. Design criteria:



 Accelerated Weather UV test machine



 (1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings

(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)

(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance

(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps

(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics

(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure

(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics

(8) IEC 61345: UV Test for Photovaltalic (PV) Modules

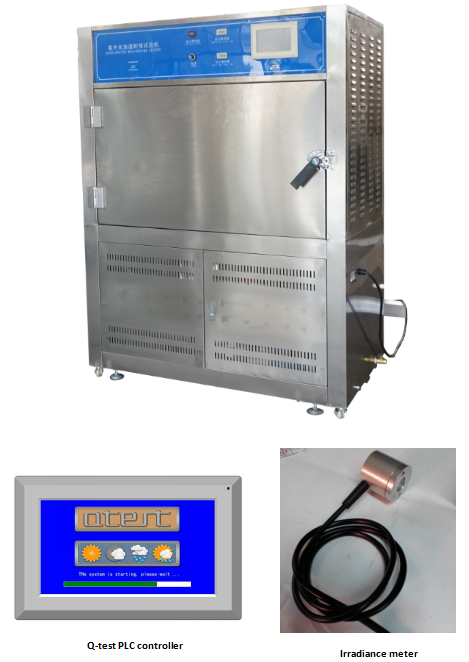

7. Poduct image:



Accelerated Weather UV test machine

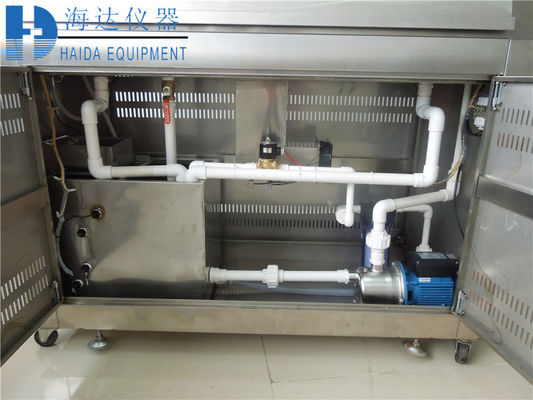

Product structure:





Chamber structure.jpg







UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test ChamberUV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber



UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber



UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber
UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test ChamberUV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber
UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test ChamberUV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber

UV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test ChamberUV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test ChamberUV Accelerated Weathering Tester , Touch Screen Type Rubber UV Aging Test Chamber



UV Accelerated Weathering Tester_pdf.pdf
