Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature

China Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature supplier
Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature supplier Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature supplier Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature supplier Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature supplier Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature supplier

Large Image :  Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E808-90
Temperature Range: 35°C~55°C
Temperature Fluctuations: ≤±0.5°C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Brine Tank Capacity: 25L Equipment Material: P.V.C Rigid Plastic Board
Lab Volume: 270L Power: Electronic
Product Name: Cyclic Corrosion Test Chamber Temperature Precision: ±1℃
Temperature Range: 35℃~55℃ Use: Paint;electroplating;organic And Inorganic Coating;anode Processing;antirust Oil And So On

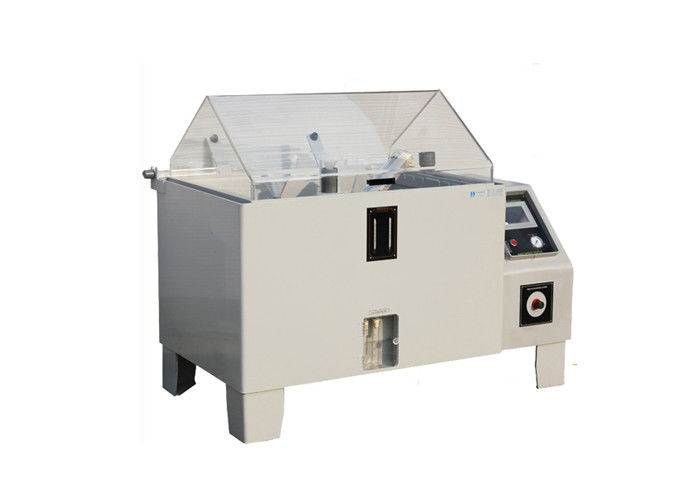

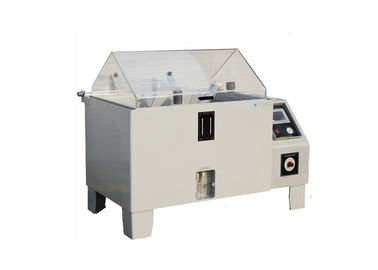

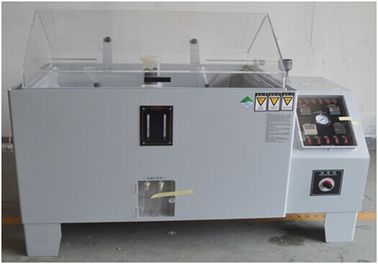

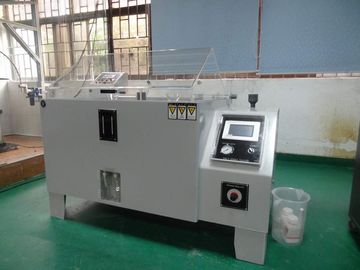

Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature



1. Usage



Coating Corrosion Testing Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.



Coating Corrosion Testing Machine With 90 * 60 * 50cm Inner Size



 2. Specifications:



Model

HD-E808-90

Inner Box Size (L×W×H)

90×60×50 cm

Outside Box Size(L×W×H)

141×88×128 cm

Equipment Material

Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent  P.V.C. rigid plastic bo.ard

Temperature Range

35°C~55°C

Temperature Fluctuations

 ≤±0.5°C

Temperature Uniformity

 ≤±2°C

Temperature Precision

±1°C


Test Chamber Temperature

Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C

Saturated air Barrel Temperature

Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C

Brine Temperature

35°C±1°C

Spray Quantity

1.0~2.0 ml / 80cm2 / hr

PH

Salt Spray Method (NSS ACSS6.5~7.2)
 Corrosion-resistant Testing Method(CASS)3.0~3.2

Lab Volume

270L

 Brine Tank Capacity

25L

Power

AC220V,15A

Multiple Safety Protection Devices

Current discharge protection, over pressure protection,over temperature protection, over load fuse protection

Accessories

Testing Salt/ Measuring tank/ Equipment  each 1 set

Standard

CNS: 3627, 3385, 4159, 7669, 8886;





3. Available test methods



  1. Neutral salt spray test (NSS test)
  2. Salt spray test (SS test)
  3. Acetic acid salt spray test (ASS test)
  4. Copper accelerated instinct test
  5. High-temperature humid heat test





http://www.qc-test.com/photo/qc-test/editor/20121024115536_77291.jpg





http://www.qc-test.com/photo/qc-test/editor/20121026184131_88791.jpg



The Introduction Of :
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.





http://www.qc-test.com/photo/qc-test/editor/20130517151630_20843.jpghttp://www.qc-test.com/photo/qc-test/editor/20130517151646_90025.jpg





Customer feedback:

Acetic Acid Salt Spray Coating Corrosion Testing Chamber , High Temperature





(salt spray chamber)Related products:
Model / Link Interior Dimensions(W x D x H)
HD-E808-60 600x400x450mm)
HD-E808-90 900x600x500mm
HD-E808-120 1200x1000x500mm
