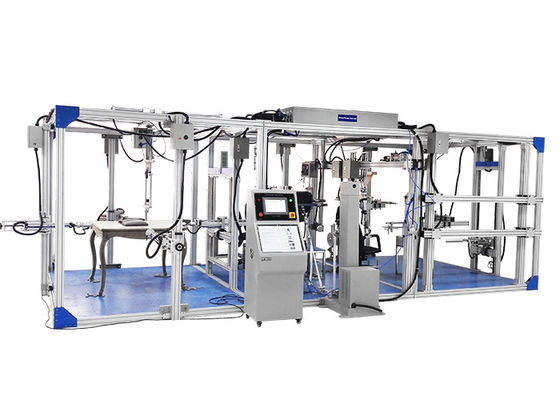

Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing

China Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing supplier
Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing supplier Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing supplier Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing supplier Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing supplier Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing supplier

Large Image :  Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F743
Power: Electric
Port: Shenzhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Counter: LCD, 0-999,999 Power: Electronic
Product Name: Furniture Testing Equipment Control Mode: PLC With LCD Touch Screen
The Maximum Tension Value: 150kg Type: Universal Furniture Testing Equipment

 Universal Furniture Testing Equipment With PLC Control For Static And Cyclic Testing



Main Parameters:

Universal Furniture Testing Equipment consists form several parts

  1. Tension mechanism, servo motor and the strap pulley architecture, the intensity of the rotation transformed into tension and supplemented force values ​​turn sensor read correctly tension, the action of the closed-loop control of servo motor to achieve a number of pull. Static and cyclic testing. Rally and speed can be set free. Mainly used for 5, 6,13,14,15, and 16 test.
  2. In addition to this machine is also configured with two groups of electric actuator, respectively, for a group of the vertical apparatus and the horizontal apparatus 1 group, each group independently adjust the speed and thrust. Stroke is 500mm
  3. The vertical means of the servo motor can be used for the actuator, the vertical position adjustment, mainly used for the first 11.4,22,23 and 24 of the test; the maximum pressure is 150 kg.
  4. Level device servo motor caused the brake position adjustment of the pieces up and down and left and right mobile and flexible to meet the demand for different test location, is mainly used for 10,12.3 and 12.4 testing. 50 kg maximum thrust, adjustable up and down the range from 500 mm to 1200 mm.
  5. the bottom plate of the test machine drilling multiple rows of screw holes for easy installation of different attachments and fixed test conditions
  6. each electric actuator front-end with a quick connector for easy replacement of the load block and fixture
  7. control mode: PLC with LCD touch screen
  8. the maximum tension value:150kg
  9. the maximum thrust value(horizontal):50kg
  10. the maximum pressure value(Vertical)150kg
  11. Can be equipped with computers, recording force and displacement changes.

Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing

Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing



OUR COMPANY

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing



Why choose us?



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Universal Furniture Testing Machines / Equipment With PLC Control For Static And Cyclic Testing



After-service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
