Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester

China Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester supplier
Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester supplier Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester supplier Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester supplier Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester supplier

Large Image :  Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E802-1
Power: Electric
Port: Shenzhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Outside Dimension: 500W×1300D×1360Hmm Material: SUS#304 Stainless Steel
HD-E802-1: UV Aging Test Chamber Product Name: Uv Test Chamber
Temperature Control: PID SSR Control Temperature Range: RT+10~70°C


             Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester

Accelerated Weather UV test machine
Product description
Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
                                              Reliable Ultraviolet Light UV Aging Test Chamber , Professional UVB Light Tester



Applications function:
1.Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2.To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3.Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.



Application industry (not limited to the following):
1. Paint ink paint, resin, plastic
2. Printing and packaging, aluminum, adhesives
3. Motorcycle industry, cosmetics,
4. Metal, electronics, electroplating, medicine and so on.



Test standard(inculding but not limited to... ):
Compliance with ASTM G53-77 specifications GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.


Technical parameters:

Studio Size

400W×1140D×390Hmm

Outside dimension

500W×1300D×1360Hmm

Materials

Inside and Outside SUS#304 stainless steel

Temperature range

RT+10~70°C

Temperature uniformity

±2°C

Temperature fluctuation

±0.5°C

Temperature control

PID SSR control

Humidity range:

 ≥90%RH

Controller

Korean TEMI 880 programmable controller

Control mode

Balance temperature humidity control (BTHC)

Test cycle setting

Illumination, condensation and water spray test cycle is
 programmable

Lamp power

40W/Piece

Distance from sample to lamp

50±2mm (adjustable)

Centre distance between the lamp

70mm

Irradiance

1.0W/cm2

Wavelength ultraviolet light

UV-A: 315-400nm;  UV-B: 280-315nm (8pcs, 1600h lifetime)

Effective irradiation areas

640×1140mm

Irradiation black panel temperature

50°C~70°C

Standard Specimen Size

75×150mm or 75×3000mm  (special specitications to be
described in the contact)

Required water depth for water channel

25mm, automatically control

Testing time

0~999H, adjustable

Power

220V/50Hz /±10% 5KW

Protection system

Overload short circuit protection, over temperature
protection, water lackin


Chamber Structure:
Accelerated Weather UV test machine
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.


Control System:
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.

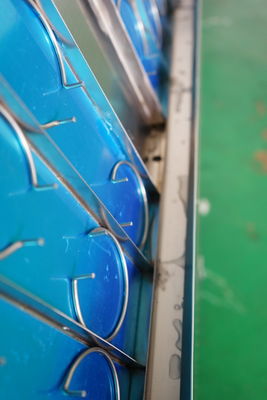

Test Specimen Mounting:
 Accelerated Weather UV test machine
The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.


Design criteria:
 Accelerated Weather UV test machine
(1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)
(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
(8) IEC 61345: UV Test for Photovaltalic (PV) Modules


 Poduct image:
Accelerated Weather UV test machine
Product structure:
uv chamber


UV Accelerated Weathering Tester_pdf.pdf
