800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber

China 800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber supplier
800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber supplier 800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber supplier 800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber supplier

Large Image :  800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E702-800
Power: Electric
Port: Shenzhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Display: LCD Exterior Dimension: 145x190x135cm
Humid. Range: 10 ~ 98 Percent R.H. Interior Dimension: 100×100×85cm
Material: Stainless Steel Plate(SUS304) Product Name: Thermal Cycling Device
System: Balanced Temperature & Humidity Control System Temp. Range: -70°C~150°C

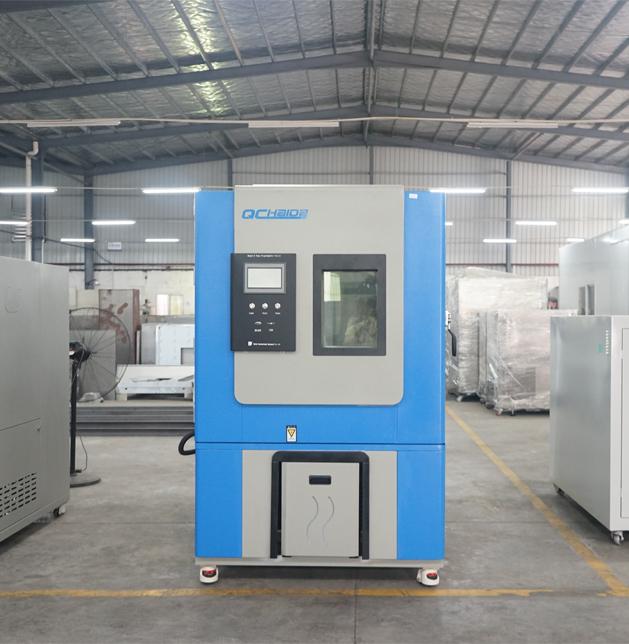

800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber


Detailed Product Description:

Temperature Humidity Chamber

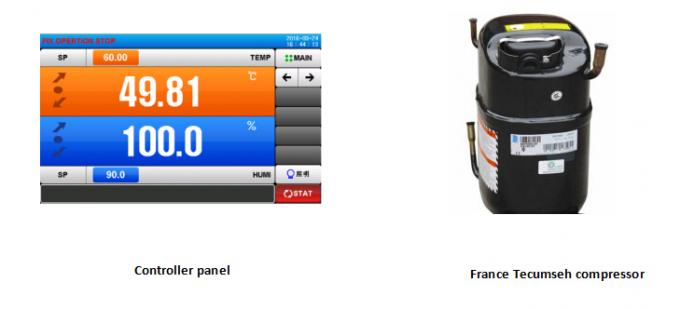

1. LCD touch screen, easy program.
2. Inner material: SUS#304
3. Tecumseh Compressor


The Temperature Humidity Chamberis designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.


Specification:


Model :

HD-E702-800

System:

Balanced Temperature & Humidity Control System

Temp. range:

-70°C~150°C

Humid. range :

10 ~ 98 percent R.H.

Temp. & Humid. accuracy :

± 0.3°C;  ± 2 percent R.H

Temp. & Humid. regularity:

± 1°C;   ± 3 percent RH

Resolution :

0.01°C, 1 percent, P.I.D control

Heating up :

-40°C ~ +100°C within 45 min

Heating down :

20°C~ -20°Cwithin 40min

Interior dimension(W×D×H) :

100×100×85cm

Exterior dimension(W×D×H):

145x190x135cm

Interior material :

Stainless steel plate(SUS304)

Exterior material :

Stainless steel plate(SUS304)

Insulation :

Rigid  foam

Refrigeration system:

Air cooled, Hermetic compressor, single stage refrigeration system.

Display :

LCD

Safety devices:

No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm

Accessories:

Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp.

Weight :

Approx. 600kg

Power :

 AC220V±10 percent 50/60Hz



Features:

1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Able to display the relative date and information of the whole operating system in running mode, graphic display, precautions, maintenance and troubleshooting appear on the screen instantly.
4. Test chambers The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operation life of the machine and decrease the failure rate.
6. Water supply adopts automatic watering system, circulating water supply together with water filter

800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber

800L Environmental Testing Equipment , Programmable Temperature And Humidity Chamber


(climatic chamber chamber)Related Products:
Model / LinkInterior Dimensions(W x D x H)Temperature RangeHumidity range
HD-E702-100-7400*500*500mm-70~+150℃20~98%R.H.
HD-E702-150-7500*500*600mm-70~+150℃20~98%R.H.
HD-E702-225-7500*600*750mm-70~+150℃20~98%R.H.
HD-E702-408-7600*800*850mm-70~+150℃20~98%R.H.
HD-E702-1000-71000*1000*1000mm-70~+150℃20~98%R.H.
