Chair Seating and Back Durability Tester With Impact Test And Static Front Test

Chair Seating and Back Durability Tester With Impact Test And Static Front Test
Chair Seating and Back Durability Tester With Impact Test And Static Front Test Chair Seating and Back Durability Tester With Impact Test And Static Front Test

Large Image :  Chair Seating and Back Durability Tester With Impact Test And Static Front Test

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F780
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Counter: 0-999999;memory;output Control Cylinder Stroke: 0-300mm
Machine Size: 270*85*80cm Power: Electric
Product Name: Furniture Testing Equipment Type: Chair Seating Durability Tester
High Light:

Chair Seating Back Durability Test Machine

,

AC220V Durability Test Machine

,

Durability Test Machine With Impact Test

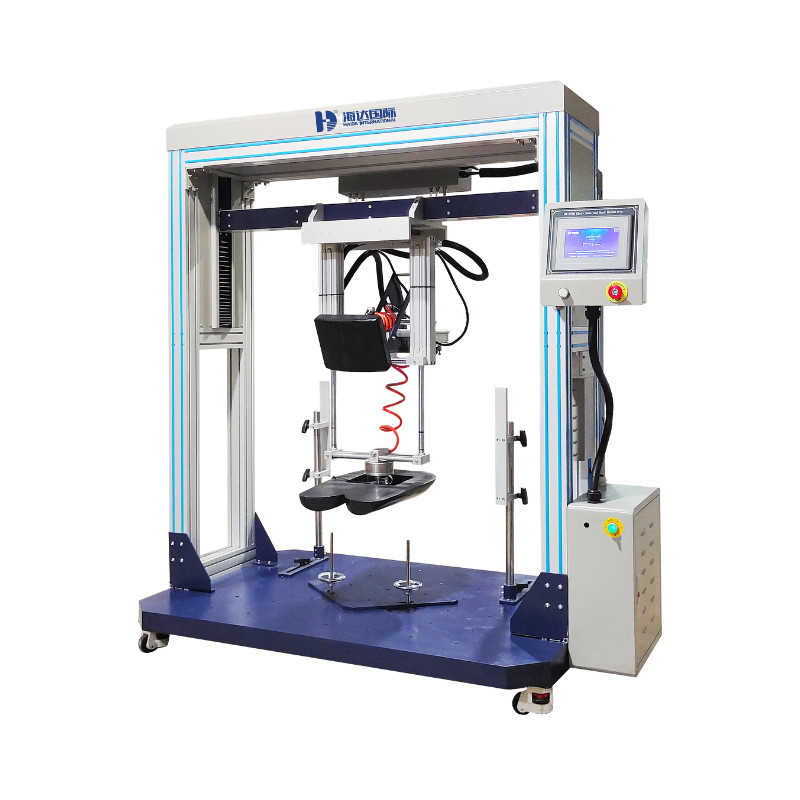

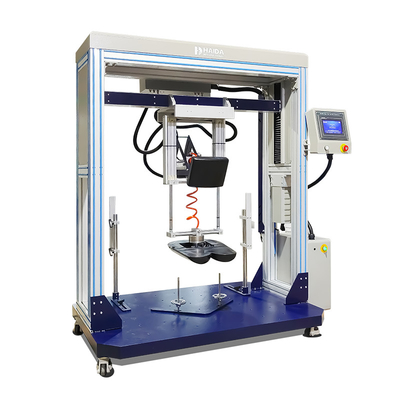

Chair Seating and Back Durability Tester With Impact Test And Static Front Test



undefined Chair Seat and Back Test Video



Specifications

Chair Seating Durability Tester is used to assess seat covers in the vertical load capacity of endurance, suit all kinds of chair


The main technical parameters

Counter

0-999,999, memory, output control

Impact sandbags diameter

16 inch 125 pounds standard sandbbags

Static pressure mould diameter

8 inch, 165 pounds briquetting

Impact speed

10-30 times/minute or specified

Static pressure speed

10-30 times/minute or specified

Cylinder stroke

0-300mm

Rail height

90-135cm

Machine size

270*85*80cm

Power

1#, AC220V, 3A

BIFMA requirements

impact 100000 times+ static pressure 20000 times(left)
+static pressure 20000times (right)



Product description

Chair Seating Durability Tester to evaluate the ability of a chair to withstand heavy impact forces on the seat. This tester is designed for dynamic and cyclic durability seat test

Test Properties: comprehensive performance test, Assessment of seat covers in the vertical load capacity of endurance.

Specimen: the whole chair, all kinds of chair.

Test program: Composed with impact test and Static front test

Impact test: Impact the chair with 125 pounds standard sand bags at 10-30cpm speed 100000 times.

Hydrostatic test: press the chair around the corner before and after slowly with 10-30cpm speed 20000 times.

Results evaluation: The whole chair will not lose the function after testing.



Chair Seating and Back Durability Tester With Impact Test And Static Front Test 1
