30mm Flame Height Flame Retardant Testing Equipment For Medical Protective Masks

China 30mm Flame Height Flame Retardant Testing Equipment For Medical Protective Masks supplier
30mm Flame Height Flame Retardant Testing Equipment For Medical Protective Masks supplier 30mm Flame Height Flame Retardant Testing Equipment For Medical Protective Masks supplier

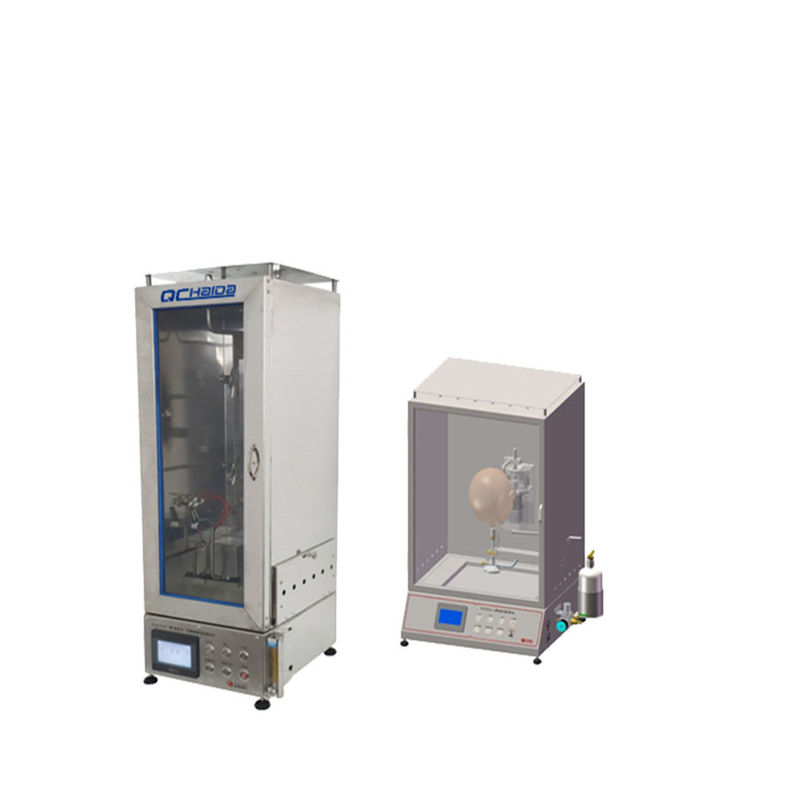

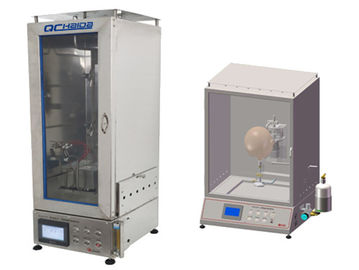

Large Image :  30mm Flame Height Flame Retardant Testing Equipment For Medical Protective Masks

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Model Number: HD

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Contact Now
Detailed Product Description
Flame Height: Adjusted At 40±4mm Weight: About 35Kg
Power Supply: Ac220V 50Hz 20W Machine Dimension: 720mm×570mm×1000mm

30mm Flame Height Surgical Face Mask Flame Retardant Testing Equipment



1. Products Description:

Mask Flame Retardant Testing Equipment is mainly used to test the burning performance of medical masks after contacting the flame at a certain linear speed. It is a special test instrument for the flame retardant performance of medical masks.

2. Purpose:

---
Testing the anti-combustion performance of surgical masks.

3. Meeting Standards:

  1. GB19083-2010 technical requirements for medical protective masks.
  2. YY 0469-2011 medical surgical mask.

4. Standard Parameters:

Movement speed of head mold (60±5) mm/s
Flame height adjusted at 40±4mm
Diameter of the flame temperature measuring probe 1.5mm
Temperature of the flame at (20±2) mm (800±50) ºC
Distance between the top of the burner and the bottom of the mask (20±2) mm
Height adjustment range of burner 30mm
Head die flame resistant and combustion resistant material
Ignition time and smouldering time timer 0 ~ 99.99 seconds, accuracy: ±0.01 seconds
Machine dimension 720mm*570mm*1000mm
Power supply AC 220V, 50Hz ,20W
weight about 35Kg



5. Features:

  1. Color touch screen control, all stainless steel manufacturing, experimental cabin door for high temperature resistance, explosion-proof glass to ensure safety;
  2. The gas supply system is with microcomputer program control, and two kinds of gas source connection, can be connected to the household gas;
  3. Adopt imported air source valve, heat sensor and spark generator to ensure stability and accuracy;
  4. The ignition device is automatic, the flame capacity can be adjusted according to requirement.

6. Company Introduction:

Haida International Instrument  products are widely used in many industries such as paper products, packaging, ink printing, adhesive tape, luggage, shoemaking, leather, environment, toys, baby products, hardware electronics, plastics and rubber, etc., and are suitable for scientific research units, quality Inspection institutions, academic discussions and other fields; the company's products comply with domestic and international standards such as UL, ASTM, JIS, GB, ISO, TAPPI, EN, DIN, BS ... Main products: carton compression tester, rupture machine, rupture strength tester, ring pressure tester, ring press, edge pressure tester, vibration tester, shaker, simulated transportation shaker, tensile machine, tensile test machine , Electronic tension machine, constant temperature and humidity test chamber, constant temperature and humidity test machine, drop test machine, universal material test machine, aging test chamber, cold and hot impact test machine, cold and hot impact test chamber, tape retention test machine, peel strength test machine .
