Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion

Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion
Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion

Large Image :  Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-521
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Standards: En71, ANSI, UL, ASTM, Ista Warranty: One Year
Max. Test Load: 100 Kg Power: 220V, 50 Hz
Simulation Speed: 25~40 Km/H Vibration Mode: Roundtrip
Woke Table Size: 1000*1200 Mm
High Light:

impact test apparatus

,

impact testing machine

Simulation Transporation Vibration Table Testing Equipment

ISTA 1A Constant Frequency Rotary Motion



Product Description

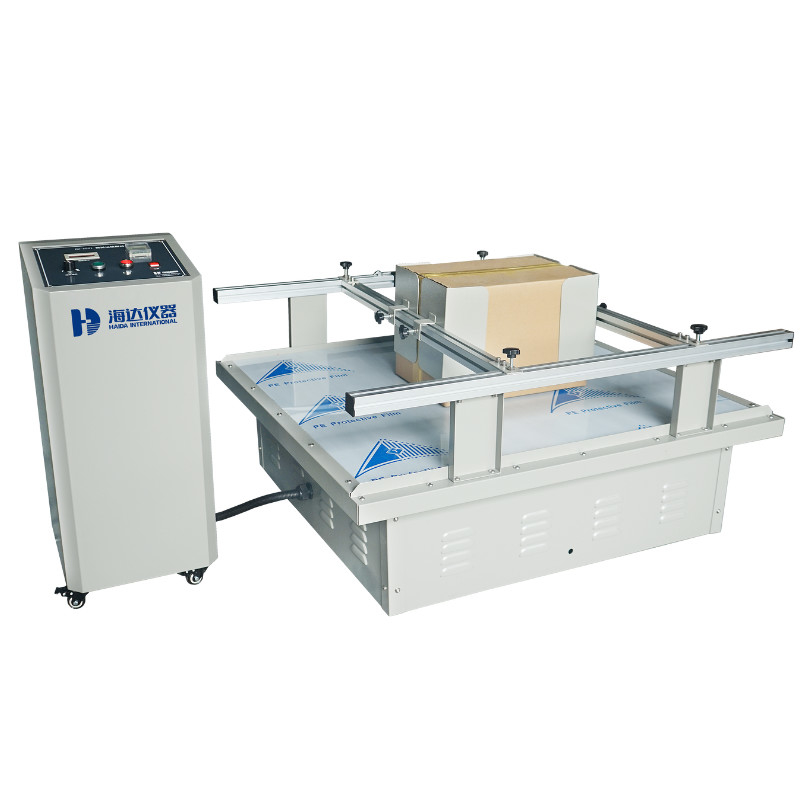

ISTA 1A Constant Frequency Rotary Motional Simulation Transporation Vibration Table Testing Equipment which simulates a transporation environment, is applicable to the vibration test of toys, electronics, furnitures, gifts, ceramics, communications, packagings, equipment, computer and automobile components, etc.
Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion 0

Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion 1


Features
1. low price, which is only 10% of the same products in the USA.
2. the digital screen dispaly the vibration frenquency.
3. use rail track for the installation of the test sample, oprate easily and safely.
4. the pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable, no need to install the land-end screw.


Specifications


Max. Test Load

100 Kg

Frequency Range

60-300 rpm

Amplitude Range

25.4 mm (1 inch)

Vibration Mode

Roundtrip

Simulation Speed

25~40 km/h

Woke Table Size

1000×1200 mm

Outside Dimension (L×W×H)

1255×1070×660 mm

Power Capacity

1 HP

Weight

125 Kg

Environmental Conditions

Temperature: 5~40°C; Related Humidity <85%

Speed Mode

DC converter or AC Frequency Control

Power

220V, 50 Hz

Design Criteria

EN71, UL, ASTM ISTA



What is ISTA?
ISTA stands for the “International Safe Transit Association”, a worldwide organization focused on developing standards, educational programs and tools for optimizing packaging solutions.
ISTA defines the testing protocols that must be performed to certify that different types of packaging can endure the foreseeable conditions they will encounter during transport. In so doing, ISTA has created a worldwide network of freight forwarders, shippers, manufacturers, test laboratories, and educational and research institutions to collaborate on maintaining, improving and updating protective packaging standards.

Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion 2



Why Certify Your Packaging With ISTA?


The ISTA Certification Ensures:
Visible proof of conformity of your packaging to internationally accepted test protocols as evidenced by the ISTA seal;
Faster time-to-market for a competitive advantage, given the accelerating growth of e-commerce;
That your product will be able to withstand shocks, vibrations, compression and extreme weather conditions as required by your specifications;
Increased customer satisfaction by improving your company’s brand reputation.



About Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion 3

Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion 4Simulation Transporation Vibration Table Testing Equipment ISTA 1A Constant Frequency Rotary Motion 5
