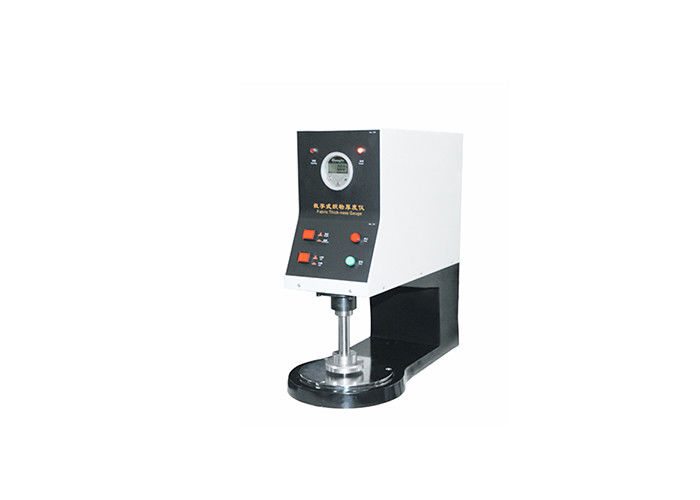

ISO3616 And ASTMD1777 Textile Testing Equipment / Fabric Thickness Tester

Detailed Product Description
Power: Electronic Dimension: 700*600*300mm
Weight: Appro 40kg
High Light:

fabric checking machine

,

textile industry equipment

ISO3616 And ASTMD1777 Textile Testing Equipment / Fabric Thickness Tester



Application

Used to determine the thickness of various textiles, textile products and nonwovens.



Standards

ISO3616  And ASTMD1777



Feature:

1. The presser foot is made of 316 stainless steel.

2. The four corner deviation of the presser foot is within the error range.

3, The structure design is reasonable, high sensitivity, to ensure that the balance is within the scope of the verification regulations.

4, The test range is large, up to 25mm.



Technical parameters

Measuring thickness range

0.01 ~ 25.00mm, LCD display resolution: 0.01mm

Presser foot diameter and area

Φ11.28mm,100mm2;Φ50.48mm,2000mm2;Φ56.42mm,2500mm2;Φ112.84mm,10000mm2.

pressure weight

5cN, 10cN, 100cN, 400cN, 1000cN a total of 5 kinds

5cN weight only 1

10cN weight only 2

50cN weight only 2

100cN weight only 1

400cN weight only 1

1000cN weight only 1

weight

Appro 40kg

Dimension

700*600*300mm

Mendatory accessories

weights

Thickness range

0-25mm

Pressure foot

1.129’’ diameter under a load of 0.6 Psi

ISO3616 And ASTMD1777 Textile Testing Equipment / Fabric Thickness Tester 0
