Product Details:
|
| Power: | Electronic | Power Supply: | AC 220±10V,50Hz |
|---|---|---|---|
| Weight: | 25kg | Size: | 560*340*250 |
| High Light: | fabric checking machine,textile industry equipment |
||

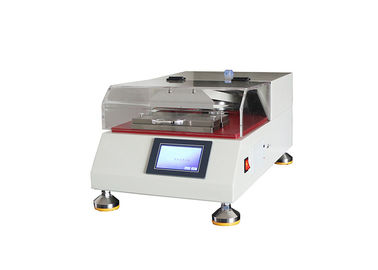

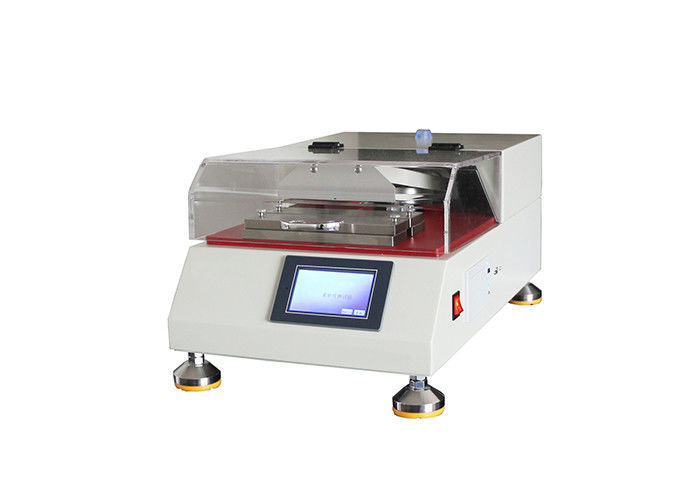

Softness Tester
Principle:
It is suitable for the determination of the softness of the material such as high grade toilet paper, tobacco slice and fiber paper and so on.
Testing standard
GB/T 8942 the determination of the softness of paper
Technical parameters
| Measurement range | 10~1000mN; resolving power:0.1mN |
| Indication error | ≤±1%FS |
| Variability of value | ＜1% |
| Test Head Stroke | (12±0.24)mm |
| Test Head press depth | 8mm+0.5mm |
| Slit width | 5mm; 6.35mm;10mm,20mm(the width error should not exceed ±0.05mm) |
| Test speed | (1.2±0.24)mm/s |
| Printer | Thermosensitive micro printer |
| Power supply | AC 220±10V,50Hz |
| Weight | 25kg |
| Size | 560*340*250 |
