AC220V Glove Cut Resistance Test Machine / Textile Measuring Machines

China AC220V Glove Cut Resistance Test Machine / Textile Measuring Machines supplier

Large Image :  AC220V Glove Cut Resistance Test Machine / Textile Measuring Machines

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: CE, , ISO
Model Number: HD-W803

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10set/ month
Contact Now
Detailed Product Description
Weight On Blade: 5±0.05N Cutting Speed: 10cm/s
Diameter Of Round Blade: 45±0.5mm

Glove Cut Resistance Tester

Glove Cut Resistance Test Machine Textile Measuring Equipment



Product description:

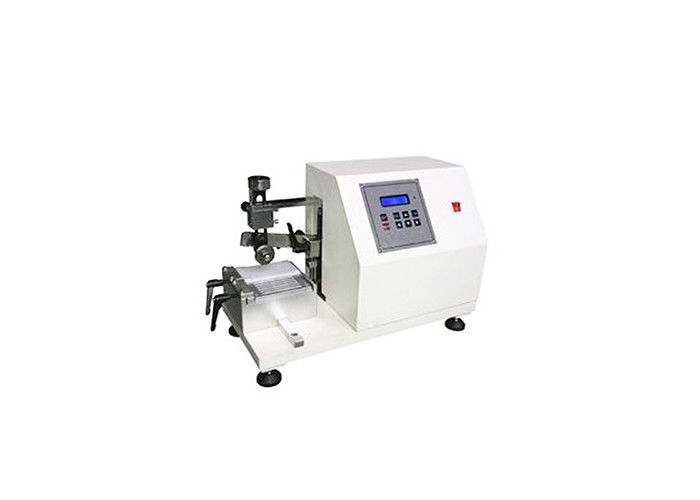

This Cut Resistance Test Machine is used to test the blade cut resistance of safety gloves, leather, coated fabrics and other materials, but it's not applied to hard gloves.



Working principle:

A rotating circular blade cutting near placed in special sample device, blade move under the provision of load , automatic number, it will automatic stop when the test end, contrast before and after the test, and then can get test results.



Main technical parameters

Horizontal travel: 50mm
Weight on blade: 5±0.05N
Cutting speed: 10cm/s
Diameter of round blade: 45±0.5mm
Thickness of blade(accessories)

0.3±0.03mm

(Japan OLFA's 45mm REF OLFA RB Blade-10pcs)

Sharp scissors(accessories) For cutting sample-1pc
Cutting angle: 30~35 degree
Hardness of blade: 740~800HV tungsten steel
Specimen size: 100x80mm, 5pcs can be tested
Counter: LED, 6 digits
Machine size: 550×450×300mm(L×W×H)
Weight: 60kg
Power supply: AC220V, 50/60Hz, single phase
Test standard EN388.6.2, ISO20344.6.1
