AC 220V 50Hz 120W Textile Testing Equipment Stiffness Tester

China AC 220V 50Hz 120W Textile Testing Equipment Stiffness Tester supplier

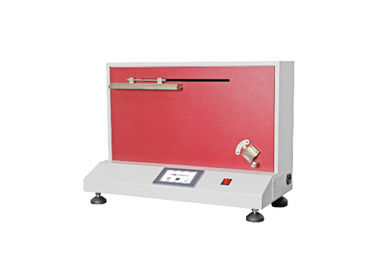

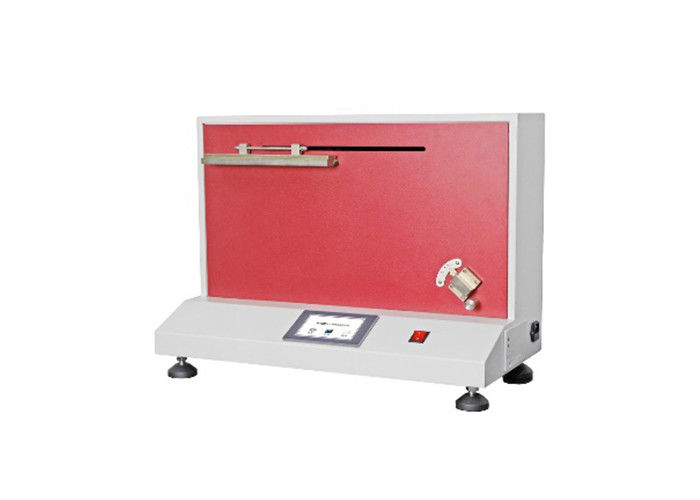

Large Image :  AC 220V 50Hz 120W Textile Testing Equipment Stiffness Tester

Product Details:

Brand Name: HAIDA
Model Number: HD
Contact Now
Detailed Product Description
Measurement Accuracy: 0.1mm The Measurement Range: 5 ~ 200mm
Measuring Angle: 41.5 °, 43 °, 45 ° Three Adjustable

Stiffness Tester

Application:

It is used to test the bending resistance of fabrics such as bending elongation, flexural strength and bending stiffness.



Standards:

GB/T 18318.1 Determination of flexural properties of textiles - Part 1

Textiles -- Test methods for textiles -- Part 7 : Determination of flexural strength

ASTM D1388 Fabric Stiffness Test Method Specimen Briquet Length and Quality

ASTM D5732, BS 3356, DIN 53362, BSEN 22313, ERT 50-3, IS 6490, JIS 1096, JIS 1018



Instrument characteristics:

1. The testable angle of the sample: 41.5°, 43°, 45°, convenient for angular positioning, meeting the requirements of different test standards.

2, using infrared measurement method, agile and accurate data.

3. The transmission device is a ball screw and a linear guide to ensure smooth operation and no swing.

4. The pressure plate presses the sample by its own weight, conforms to the standard, and does not cause deformation of the sample.

5, the pressure plate with a ruler, can observe the stroke in real time.

6, with a print interface, you can directly print out the data report; can also be connected to the computer operation.



Technical Parameters:

Item Description
Measuring angle 41.5 °, 43 °, 45 ° three adjustable
sample size 250*25mm, 200*25mm, 150*25mm
Sliding speed 3mm / s, 4mm / s, 5mm / s
The measurement range 5 ~ 200mm
Weight 5.5kg
Measurement accuracy 0.1mm
The external dimensions 480*250*380mm(L*W*H)
weight Appro 30kg
power AC220V 50Hz 120W
Mendatory accessories Reflection mirro,sample cutting template
