| Specimen Length: | 25mm,50mm,100mm,200mm,250mm,500mm | Rotating Speed Of Grippe: | 1500 R/min, 800 R/min, Slow Inching Speed. |
|---|---|---|---|
| Measuring Range: | 1 ~ 9999.9 Twist / 10 Cm | Test Speed: | 800r/min, 1500r/min |
| High Light: | fabric checking machine,textile industry equipment |
||

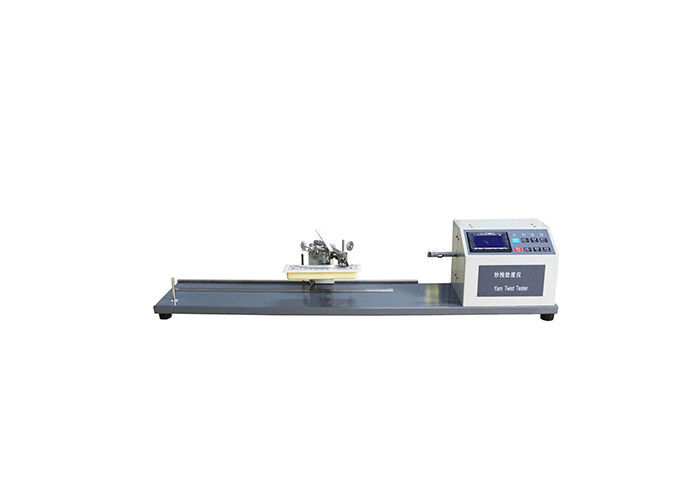

High Speed 1500r / Min Yarn Twist Tester With Microcomputer Program Control
Application
To determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist/retwist methods.
Testing standard
ASTM D1422 Standard Test Method for Twist in Single Spun Yarns by the Untwist-Retwist Method
ASTM D1423 Standard Test Method for Twist in Yarns by Direct-Counting
ISO 2061 Textiles -- Determination of twist in yarns -- Direct counting method
BS 2085 Method of test for determination of twist in yarns, direct counting method
DIN 53832 Testing of textiles -- Determination of the twist of single and plied yarns and of the change of length. untwist method
Technical parameters
| Work mode |
Microcomputer program control Data processing Printing results |
| Test method |
Test method 1: Single untwist-retwist method Test method 2: Double untwist-retwist method Test method 3: Direct counting method Test method 4: Multiple untwist-retwist method |
| Specimen length | 25mm,50mm,100mm,200mm,250mm,500mm |
| Rotating speed of grippe | 1500 r/min, 800 r/min, slow inching speed. |
| Measuring range | 1 ~ 9999.9 twist / 10 cm |
| Untwisting elongation range | Max. 60mm |
| Determine maximum twist contraction | 20mm |
| Test speed | 800r/min, 1500r/min |
| Additive tension | 0.5~160.5cN |
| Dimension size | 880x150x175mm |
| Weight | 16kg |
| Power |
220V,50Hz |
