LCD Display Fabric Thickness Tester Measuring Thickness Range 0.01 ~ 25.00mm

China LCD Display Fabric Thickness Tester Measuring Thickness Range 0.01 ~ 25.00mm supplier

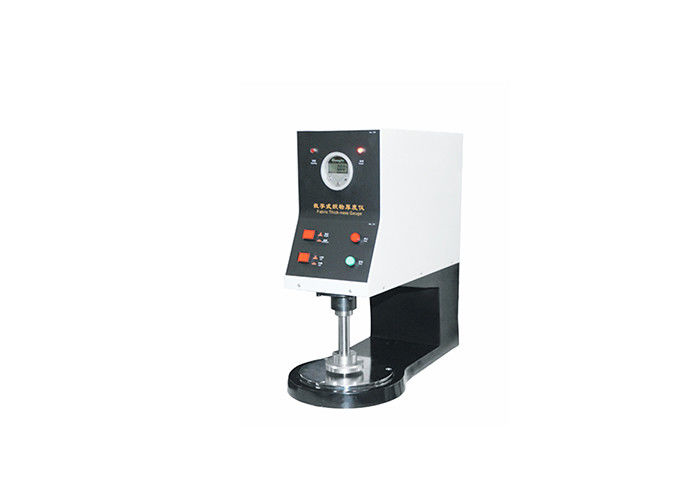

Large Image :  LCD Display Fabric Thickness Tester Measuring Thickness Range 0.01 ~ 25.00mm

Product Details:

Brand Name: HAIDA
Model Number: HD-W120
Contact Now
Detailed Product Description
Measuring Thickness Range: 0.01 ~ 25.00mm, LCD Display Resolution: 0.01mm Presser Foot Diameter And Area: Φ11.28mm,100mm2;Φ50.48mm,2000mm2;Φ56.42mm,2500mm2;Φ112.84mm,10000mm2.
Weight: Appro 40kg Thickness Range: 0-25mm

Fabric Thickness Tester



Application

Used to determine the thickness of various textiles, textile products and nonwovens.



Standards

ISO3616 And ASTMD1777



Feature:

1. The presser foot is made of 316 stainless steel.

2. The four corner deviation of the presser foot is within the error range.

3, The structure design is reasonable, high sensitivity, to ensure that the balance is within the scope of the verification regulations.

4, The test range is large, up to 25mm.



Technical parameters



Measuring thickness range 0.01 ~ 25.00mm, LCD display resolution: 0.01mm
Presser foot diameter and area Φ11.28mm,100mm2;Φ50.48mm,2000mm2;Φ56.42mm,2500mm2;Φ112.84mm,10000mm2.
pressure weight

5cN, 10cN, 100cN, 400cN, 1000cN a total of 5 kinds

5cN weight only 1

10cN weight only 2

50cN weight only 2

100cN weight only 1

400cN weight only 1

1000cN weight only 1

weight Appro 40kg
Dimension 700*600*300mm
Mendatory accessories weights
Thickness range 0-25mm
Pressure foot 1.129’’ diameter under a load of 0.6 Psi

LCD Display Fabric Thickness Tester Measuring Thickness Range 0.01 ~ 25.00mm



Introduction:
HAIDA INTERNATIONAL
is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



LCD Display Fabric Thickness Tester Measuring Thickness Range 0.01 ~ 25.00mmLCD Display Fabric Thickness Tester Measuring Thickness Range 0.01 ~ 25.00mm
