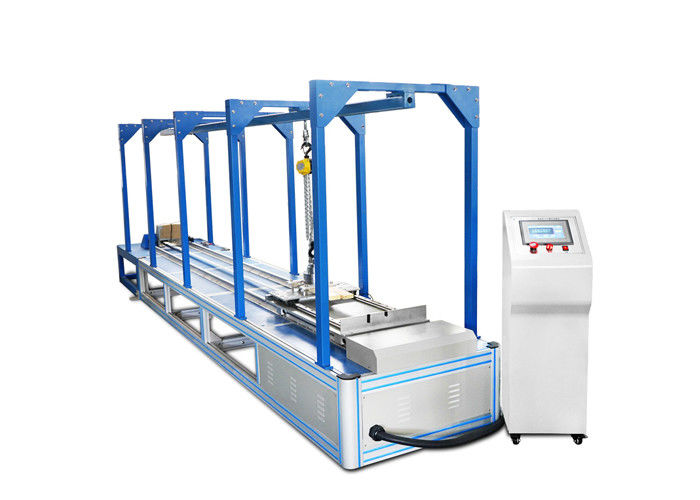

Horizontal Impact Test Machine With High Speed 1-5m / Adjustable

China Horizontal Impact Test Machine With High Speed 1-5m / Adjustable supplier
Horizontal Impact Test Machine With High Speed 1-5m / Adjustable supplier Horizontal Impact Test Machine With High Speed 1-5m / Adjustable supplier Horizontal Impact Test Machine With High Speed 1-5m / Adjustable supplier Horizontal Impact Test Machine With High Speed 1-5m / Adjustable supplier

Large Image :  Horizontal Impact Test Machine With High Speed 1-5m / Adjustable

Product Details:

Place of Origin: China
Brand Name: HAIDA
Model Number: HD-J227

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Test Speed: 1-5m/adjustable Weight: According To Standard
Speedometer: 7 Inch Touch Screen Display Motor Power: Panasonic Servo Motor 1.5KW

Scooter Horizontal Impact Test Machine Baby Scooter Abrasion Tester





DESCRIPTION

This machine is used to damage the wheel or brake after the scooter or brake is impacted by foreign objects. During the test, the steel plate is struck at a certain load with a certain load to check the damage of the scooter. PLC control, the number of times can be arbitrarily set, the speed can be arbitrarily selected. The guide rail is thick and the collision site is thick.





DESIGN STANDARD

EN71,EN13899,EN13843,GB20096





STANDARD FEATURES

Item Description
Test speed 1-5m/adjustable
Weight According to standard
Speedometer 7 inch touch screen display
Motor power Panasonic servo motor 1.5KW
Machine dimension (L*W*H) 4800**650*1020mm
Machine weight(Approx.) 500kg
Impact weight E=1/2MV>2



Horizontal Impact Test Machine With High Speed 1-5m / AdjustableHorizontal Impact Test Machine With High Speed 1-5m / Adjustable

Horizontal Impact Test Machine With High Speed 1-5m / Adjustable
