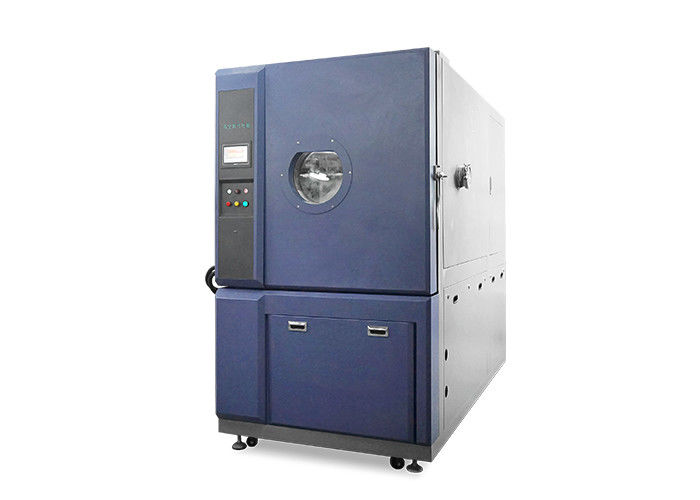

Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen

Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen
Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen

Large Image :  Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Model Number: HD-E714-220
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Detailed Product Description
Temperature Range: -40~+85℃ Cooling Speed: ≥1℃/min In Average (without Loading)
Heating Speed: ≥1℃/min In Average (without Loading) Pressure Range: Ordinary Pressure ~ 1Kpa
Pressure Deviation: ±5%
High Light:

environmental testing equipment

,

environmental testing machine

Altitude Test Chamber temperature&humidity and altitude environment test chamber



Altitude Test Chamber can combine temperature and altitude environment with optional humidity for simultaneous environmental testing. It’s used in line aeronautics, aerospace, communications, information, electronics, electrical and so on. This combination of elements allows precise simulation of real-life condition a product might encounter at various altitude levels.



STANDARD FEATURES

Item Specification
Internal dimension (W*D*H) 600*600*600mm
Internal material #304 stainless steel, mirror finished
External material Stainless steel with paint spray
Temperature range -40~+85℃
Temperature deviation ±2℃
Temperature fluctuation ±0.5℃
Temperature uniformity ≤2℃
Cooling speed ≥1℃/min in average (without loading)
Heating speed ≥1℃/min in average (without loading)
Pressure range Ordinary pressure ~ 1Kpa
Decompression time ≤10min
Pressurized method First heating/cooling, then vacuumize
Pressure deviation ±5%
Insulation high density rigid Polyurethane foam
Test time 0.1~999.9 h/m/s, adjustable.
Power system Three-phase, 380V, 50Hz
Safety protection device

Protection for leakage

Over-temperature

Compressor over-voltage and overload

Heater short circuit

Water shortage

Air circulation system
Air circulation device Vacuumed ventilator to maintain the stable temperature
Heating method Electrical heating
Refrigeration system
Compressor German brand, refrigeration system with Semi-hermetic sealed refrigeration
Cooling method Water-cooling
Accessories Expansion valve, filter, pressure controller, oil pressure controller, globe valve, solenoid valve and oil separator adopt imported brands.
Refrigerant R404A and R23
Vacuum system
Composition Vacuum measuring system and control system
Vacuum meter measuring Adopt pressure sensor to measure the meter, the data will be transferred into electric signal, then it’s input into controller for displaying and controlling.
Controlling accessories Pressure sensor, transducer, pressure regulating valve and gas regulating valve adopt famous brands.
Control system
Controller LCD touch screen, programmable control temperature and pressure
Control accuracy Temperature, 0.5℃. Pressure, 1.0 Pa
Display resolution Temperature, 0.1℃. Pressure, 0.01 Pa
Interface RS 232, USB or LAN, can be remote control.



TEST STANDARD EN50125-1:2014 FOR REFERENCE

Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen 0



DETAIL IMAGE FOR REFERENCE

Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen 1

Programmable Control System

Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen 2

Circuit Board

Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen 3

Test hole

Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen 4

Observation Window

Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen 5

Altitude Test Chamber

                Three - Phase 380V 50Hz Environment Test Equipment With LCD Touch Screen 6

Water Cooling Tower
