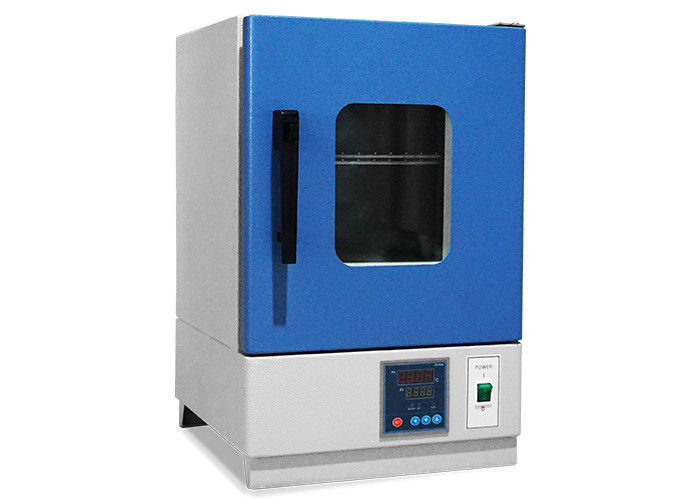

Environmental Drying Oven Temperature Test Chambers With Programmable
Drying Oven is a dry device,the electric heating tube is heated by the power source to generate a heat source, and when it is absorbed by the heating object, it can be directly converted into heat energy, thereby obtaining a quick drying effect, shortening the production cycle, saving energy, improving product quality, and etc.
Ovens are widely used in laboratories, laboratories, electronic communications, plastics, cables, electroplating, hardware, optoelectronics, plastic products, molds, shoe materials, painting, printing, medical, aerospace and higher education industries.
|Temperature range||Ambient ~ 250℃|
|Internal dimension (W*D*H)||250W*250D*250Hmm|
|External dimension (W*D*H)||450W*520D*410Hmm|
|Temperature control accuracy||± 1℃|
|Controller||LED display, PID Temperature Control & Timing Device|
|Internal material||Stainless steel # 304|
|External material||Galvanized steel plate|
|Insulation material||High density silicate insulation fiber, high temperature resistant sealer|
|Sample tray||Stainless steel, 2pcs|
|Protection device||Over Temperature Protection, Heater Short Circuit, Motor Overheating & Leakage.|
|Alarm||Audible and visual alarm|
1. The test box is designed perfectly, and the box body is machined by CNC machine tool, which is easy to operate;
2. There is a double-glazed observation window for observation of the condition of the studio;
3, the inner liner is a high-quality mirror stainless steel plate, and the outer casing is sprayed with A3 plate, which is more smooth and beautiful;
4. The door system is opened on the side of the circuit system for easy maintenance and overhaul;
5. The air circulation system adopts a low noise, long life, air conditioning type fan, and the wind wheel is a multi-wing centrifugal fan blade. The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct. The temperature inside the studio is uniform.
Temperature Control System:

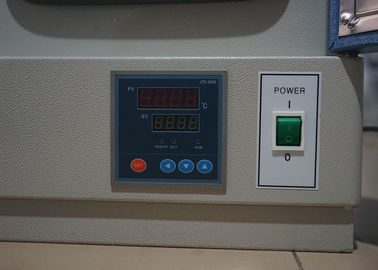

The temperature controller adopts touch buttons, digital display LED display, P·I·D intelligent control instrument;
Accuracy: 0.1 ° C (display range);
Temperature sensor: PT100 platinum resistance tester;
Control method: heat balance temperature adjustment method
1. The mechanical oven adopts the domestic streamlined arc design, the outer shell is made of cold-rolled steel plate, and the surface is electrostatically sprayed;
2. The temperature control system of the machine adopts microcomputer single-chip technology, and the system has functions of temperature control, timing and over-temperature alarm;
3. Reasonable air duct and circulation system to make the temperature uniformity change in the working room small;
4. It adopts dual-screen high-brightness digital tube display, the indication value is accurate and intuitive, the performance is superior, and the touch button setting is adjusted;

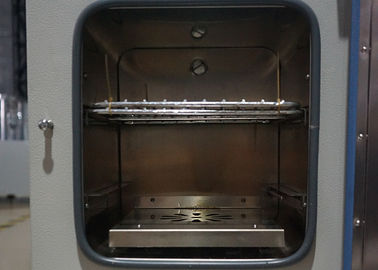

5. The inner liner is made of mirror stainless steel material, and the semi-circular four-corner design makes cleaning more convenient;
6. Workroom shelves can be arbitrarily adjusted according to user requirements and the number of shelves;
7. With air convection breeze device, the inner cavity air can be renewed;
8. The box door has a large viewing angle to observe the glass window, which is convenient for the user to observe.
