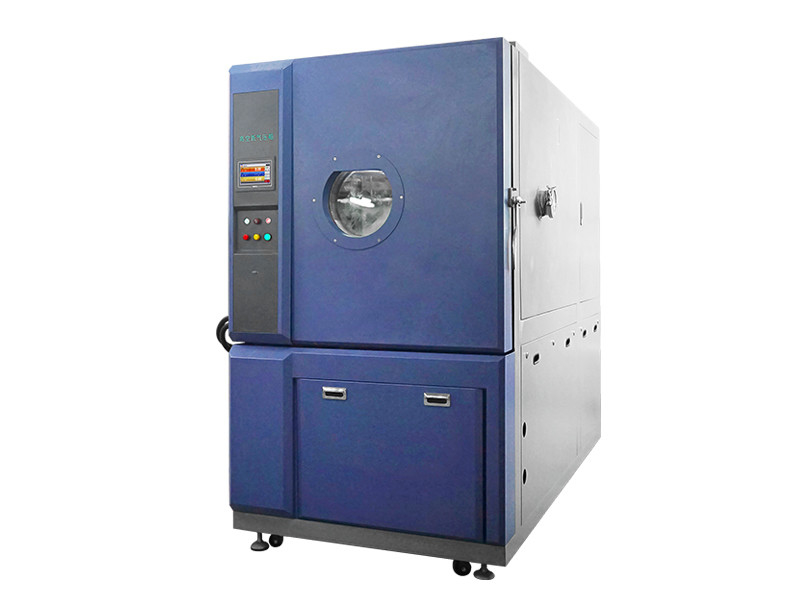

Environment Simulation High Low Temperature Humidity Altitude Pressure Test Chamber

Environment Simulation High Low Temperature Humidity Altitude Pressure Test Chamber
Environment Simulation High Low Temperature Humidity Altitude Pressure Test Chamber Environment Simulation High Low Temperature Humidity Altitude Pressure Test Chamber

Large Image :  Environment Simulation High Low Temperature Humidity Altitude Pressure Test Chamber

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO,CE
Model Number: HD-E714
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Detailed Product Description
Temperature Range: -70~+100℃(no Load);-55~+100℃(with Load) Temperature Fluctuation: ±0.5℃
Temperature Uniformity: ±2℃ Ambient Humidity: ≤85%RH
Cooling Speed: ≥1℃/min In Average (with Loading 15kg,+85℃~-55℃ ) Heating Speed: 1℃/min In Average (with Loading,-55℃~+85℃)
Pressure Range: 101Kpa~1Kpa
High Light:

humidity temperature test chamber

,

environmental testing machine

Environment Simulation High Low Temperature Humidity Altitude Pressure Test Chamber



Product Description

Low pressure test chamber is mainly used in aviation, aerospace, information, electronics and other fields, instruments and meters, electric products, materials, parts, equipment at the same time in the low pressure, high temperature, low temperature single or under the action of the environmental adaptability and reliability of the test, and or electric performance parameters for the specimen electricity measurement, adopt and composite structure form, the test chamber by is located in the front of the heat preservation box (confined structure), located at the back of the refrigeration, located on the chamber door vacuum unit and the electrical controller (system)



Standard Features:

Internal dimension (W*D*H) 1000*1000*1000mm
Temperature range -70~+100℃(no load);-55~+100℃(with load)
Temperature fluctuation ±0.5℃
Temperature uniformity ±2℃
Ambient Humidity ≤85%RH
Cooling speed ≥1℃/min in average (with loading 15kg,+85℃~-55℃ )
Heating speed 1℃/min in average (with loading,-55℃~+85℃)
Pressure Range 101Kpa~1Kpa
Pressure Accuracy ±5%
Pressure Control Method Adjust temperature first, then pump vacuum
Internal chamber material Steel plate with plastic spray
External chamber material Stainless steel
Cooling method Water Cooler
Controller

LCD touch screen, programmable control temperature and Pressure

Can set different parameter for cyclic test

Insulation material Compound material without sweating, special for low pressure
Heating Method Electrical

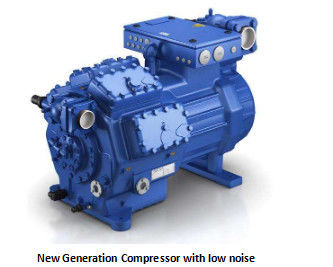

Compressor Imported new generation with low noise
Safety protection device

Protection for leakage

Over-temperature

Compressor over voltage and overload

Heater short circuit

Environment Simulation High Low Temperature Humidity Altitude Pressure Test Chamber 0



Applications

1. To simulate test environment with various altitude environments .

2. It is especially important for defense and aerospace applications where pressure and vacuum conditions are even more intense

3. Application fields: Include Aviation, aerospace, communications, electronics, electrical appliances etc.

4. Test Purpose: to guarantee the maximum quality and reliability while products or material might encounter at various altitude levels.



Features:

1. High performance and quiet operation

2. Space-saving designed for flush installation to wall

3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system

4. Adopts international brand of imported parts for cooling system to improve operation reliability

5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.

6. Multiple layers of safety device to easy maintenance.
