Hplc gas chromatograph mass spectrometry analyzer machine(GLPC/GC)

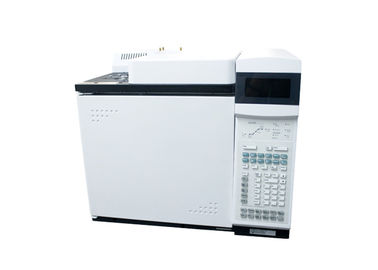

Automatic sampling gas chromatograph
Automatic sampling gas chromatograph is used for quantitative and qualitative analysis to determine the physical and chemical constants such as the distribution coefficient, activity coefficient, molecular weight and surface area of the sample in the fixed phase. An instrument for analyzing the components of a mixed gas.
Technical indicators
| Column temperature Box | ||||
| Furnace Size | 28×30×18cm | |||
| Temperature control Range | Above room temperature5℃~450℃;Using liquid nitrogen cold traps:-80℃~400℃;Using dry ice traps:-55℃~400℃ | |||
| Temperature setting accuracy | 0.1℃ | |||
| Maximum program heating rate | 120℃/min | |||
| Maximum once method run time | 999.99min | |||
| Program heating order number | 7 | |||
| Program heating rate | 0.1~120℃/min(Incremental 0.1℃) | |||
| Operation Column loss compensation (dual channel) | ||||
| Heating Zone | ||||
| 6 independent control Heating zone control (excluding furnace temperature, two inlet, two detectors, two auxiliary heating area auxiliary heating zone maximum operating temperature ) | ||||
| 300℃ | ||||
| Detectors | ||||
| Hydrogen Flame Ionization detector FID | ||||
| Maximum operating temperature | 450℃ | |||
| Minimum detectable limit | ≤2.5pgC/s [n-C16] | |||
| Dynamic linear range | ≥107(±10%) | |||
| Data acquisition frequency | The highest: 100Hz | |||
| Thermal conductivity cell detector TCD | ||||
| Maximum operating temperature | 400℃ | |||
| Minimum detectable limit | <400pg C3H8/ml(He) | |||
| Dynamic linear range | 105(±5%) | |||
| data acquisition frequency | The highest: 100Hz | |||
| Flame photometric detector FPD | ||||
| Maximum operating temperature | 250℃ | |||
| Minimum detectable limit | <4pgC/sec,<1pg P/sec | |||
| Selective | 105gS/gC,106gP/gC | |||
| Dynamic linear Range | >103S,>104P | |||
| Electronic Capture Detector ECD | ||||
| Maximum operating temperature | 400℃ | |||
| Detector compensation Gas Type | 5% Methane/Argon or nitrogen | |||
| Minimum detectable limit | <0.01Ppg/s lindane | |||
| Dynamic linear range | >5×1055 | |||
| data acquisition frequency | 100Hz | |||
| Radioactive sources | <12mCi 63Ni | |||
| Nitrogen and phosphorus detectors NPD | ||||
| Maximum operating temperature | 450℃ | |||
| Minimum check out limit | <0.2 pg N/sec,<0.2 pg P/sec | |||
| Dynamic linear Range | 105N,105P | |||
| Minimum detection limit | <0.3pg C/Sec | |||
| The above detectors are suitable for filling column and capillary column | ||||
| Optional configuration | ||||
| Anti-control software | Automatic Feed b6891n | |||
Application industry
1. Analysis of dissolved gas in transformer oil;
2. Analysis of ethylene oxide in medical devices.
3. Analysis of coke oven gas;
4. Pesticide residue analysis;
Alcohol analysis in blood; 5.
6. Analysis of natural gas and liquefied gas;
7. Indoor environment TVOC analysis;
8. Analysis of liquor components;
9. High purity gas analysis;
10. Detection of solvent residue of packaging materials.
Performance characteristics

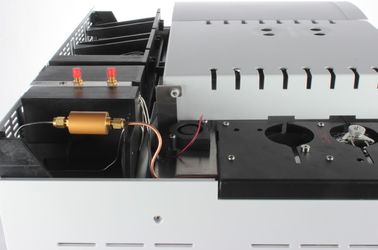

1. Inlet flow rate, chromatographic column load airflow, detector gas flow, complete EPC control
Micro-channel Air Circuit Integrated Board
All-imported miniature proportional valves and flow/pressure sensors Automatic temperature compensation ensures accurate flow and pressure control to 0.01Psi

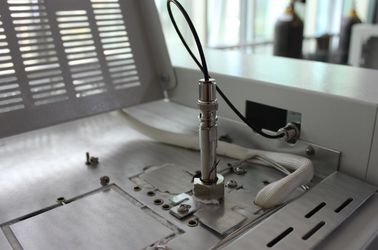

2. Industry-Leading detector design
All detectors are high-precision electronic flow/pressure control
Fit and fill column and capillary column Special ceramic treatment of the enlarged plate, in the humid season is always stable Automatic ignition, hydrogen leak automatic protection function, safe and reliable
3. Automatic ignition, hydrogen leakage automatic protection function, safe and reliable
4. Accurate furnace temperature tracking design
5. Independent Heating small column box In the multi-column chromatographic system, the temperature of different columns can be set respectively, so as to achieve the best separation effect of each column.
6. Fully imported Valve configuration system Up to 8 valves (four-pass valve, six-pass valve, ten-pass valve and liquid injection valve optional); Automatic control, sequence operation;

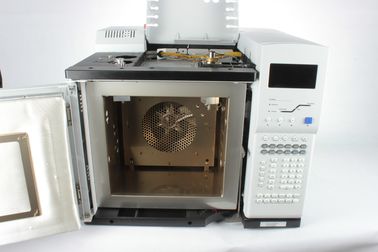

7. Precision temperature control of the heating furnace Furnace internal control accuracy less than 0.01°c
The temperature difference between the internal points is not more than the °c
Rapid heating and cooling, the highest program heating speed: 120℃/min, balance time 10 seconds, cooling time 300°c~50°c 6 minutes Absolute control of the temperature accuracy (with the actual temperature difference is less than 0.3C)
8. Pneumatic cutting technology for the convenience of implementation
Multi-dimensional chromatographic function to complete the separation and analysis of complex samples It can realize the inverse blowing function of chromatographic column to save the analysis time and cycle greatly.
9. Advanced Power Distribution Management shunt A 3000 watt UPS can provide 10 units of normal power 2250 watts/set of GC stable working power supply

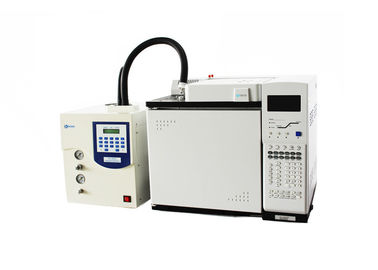

10. Automatic Feed 8-bit automatic injection device (optional Agilent 7683/7693 liquid automatic injection)
11. With Automatic online detection function
