Metal Testing Machine Pointer Rockwell Hardness Tester With Scale Selection

China Metal Testing Machine Pointer Rockwell Hardness Tester With Scale Selection supplier
Metal Testing Machine Pointer Rockwell Hardness Tester With Scale Selection supplier Metal Testing Machine Pointer Rockwell Hardness Tester With Scale Selection supplier

Large Image :  Metal Testing Machine Pointer Rockwell Hardness Tester With Scale Selection

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HD
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-G803-A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Suitable Range: HRA. B. C. D. E. F. G. H. K And HR15N.T; 30N.T; 45N.T (scale) Preliminary Test Force: 29.4, 98.07N(3, 10Kg)
Display: RS232 Computer Output Sample Max Size: Sample Max Size
Data Dispose: CPU Print: Automatic Print

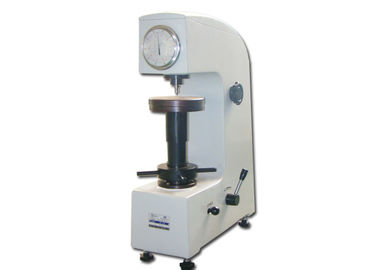

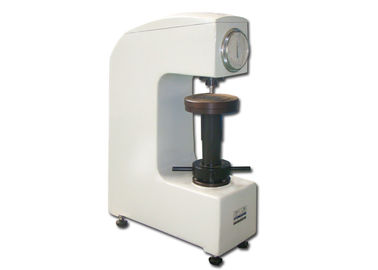

Metal Testing Machine Pointer Rockwell Hardness Tester With Scale Selection


Rockwell Hardness Tester has big screen to display. It has a lot of functions such as scale selection, match hint of indenter, contrast for Brinell, Rockwell and Vickers hardness value, keeping the increase and decrease of time, data dispose, storage, pick up, print, adjustment of illuminating brightness, and RS-232 computer output as well.
It serves to measure the hardness of hard metals, carburizing steels, quenching steels, mild steels, hard
cast irons, Al, Cu and malleable irons.



Our Features:
Rockwell Hardness Tester features high measuring accuracy, reliable performance and applicable to wide fields. It is used for hardness testing of all kinds of Rockwell and Superficial Rockwell.

Specification:



Suitable range: HRA. B. C. D. E. F. G. H. K and HR15N.T; 30N.T; 45N.T (scale)
Preliminary test force: 29.4, 98.07N(3, 10Kg)
Total test force: 147.1, 294.2, 441.3, 588.4, 980.7, 1471N (15, 30, 45, 60, 100, 150kgf)
Test force holding time: 0~60S
Test force holding and releasing method: Automatic
Display method: Back light LCD screen
Data dispose: CPU
Others: HR, HB, HV, HK etc. hardness number for contrast
Print: Automatic print
Display RS232 computer output
Sample Max size: Working table to indenter 180.00mm
The center of the indenter to the arm of the machine : 160.00mm
Dimension (L x W x H): 550 x 260 x 800mm
Net weight: Approx. 67Kg
Power supply: AC 220V + 5%, 50~60Hz


Features Of Rockwell Hardness Tester:

1. the tester is equipped with 10 times and 40 times the objective lens, 10 times the micrometer eyepiece.

2. it can display experiment method, the test force, lift the load time, measurement frequency, etc on the screen.

3. Have the thread interface connect a digital camera and CCD camera.

4. It can be equipped with CCD,LCD video measuring device.

5. It can be equipped with knoop indenter, knoop hardness measurement.
