Customized Experimental Dust Resistance Test Chamber For Climate Test

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

Customized Experimental Dust Resistance Test Chamber For Climate Test

Customized Experimental Dust Resistance Test Chamber For Climate Test
Customized Experimental Dust Resistance Test Chamber For Climate Test Customized Experimental Dust Resistance Test Chamber For Climate Test Customized Experimental Dust Resistance Test Chamber For Climate Test Customized Experimental Dust Resistance Test Chamber For Climate Test

Large Image :  Customized Experimental Dust Resistance Test Chamber For Climate Test

Product Details:
Place of Origin: China
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E706-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Test Sample: 50*40*20cm Size,4-6kg Weight Chamber Material: SUS304 Stainless Steel
Talcum Powder Amount: 2kg/ M³ Airflow Speed: No More Than 2m/s
High Light:

humidity temperature test chamber

,

environmental testing machine

Customized Experimental Dust Resistance Test Chamber For Climate Test





Description:

Dust test chamber is used for dust-proof and dust resistance experiments for various automobile parts. The main test parts include lights, instrumentation, safety belt, seat regulator, electric dust cover, steering gear shaft and locks, testing it’s dust resistance and movement safety.



Standard Features(IP5X Standard):

Item Specification
Internal dimension 1000*1000*1000(W*H*D)
Test sample 50*40*20cm size,4-6kg weight
Chamber material SUS304 Stainless steel
Specifications of square mesh sieve Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount 2kg/ m³
Airflow speed No more than 2m/s
Door Left open door with tempered glass door

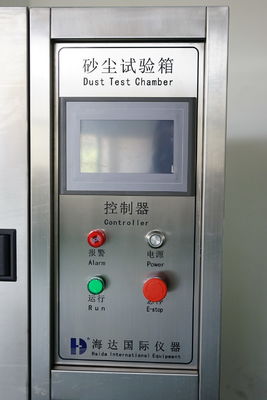

Controller

PLC Touch Screen controller, programmable to set as below cycle:

  • Blowing dust time (Stop/Blow) m/s
  • Cycle time: can be adjusted
  • Pre-set test time: 0s ~99m99s
Vacuum system Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity 60-600 L/H
Fan Centrifugal fan
Safety protection devices Meter over-temperature function, Phase shortage protection, Power short-circuit protection



Chamber Design Features:

1, Chamber material: SUS#304 stainless steel;

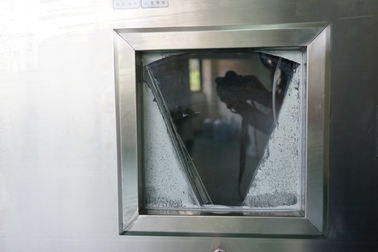

2, Transparent window is convenient to observe specimen during testing;

3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

Customized Experimental Dust Resistance Test Chamber For Climate Test 0   Customized Experimental Dust Resistance Test Chamber For Climate Test 1
