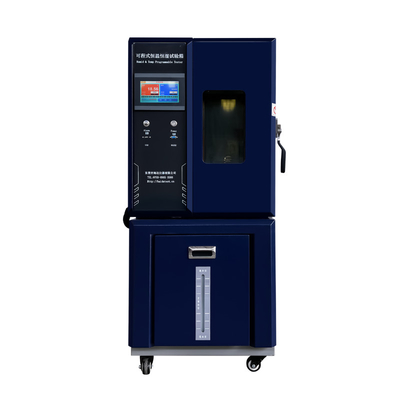

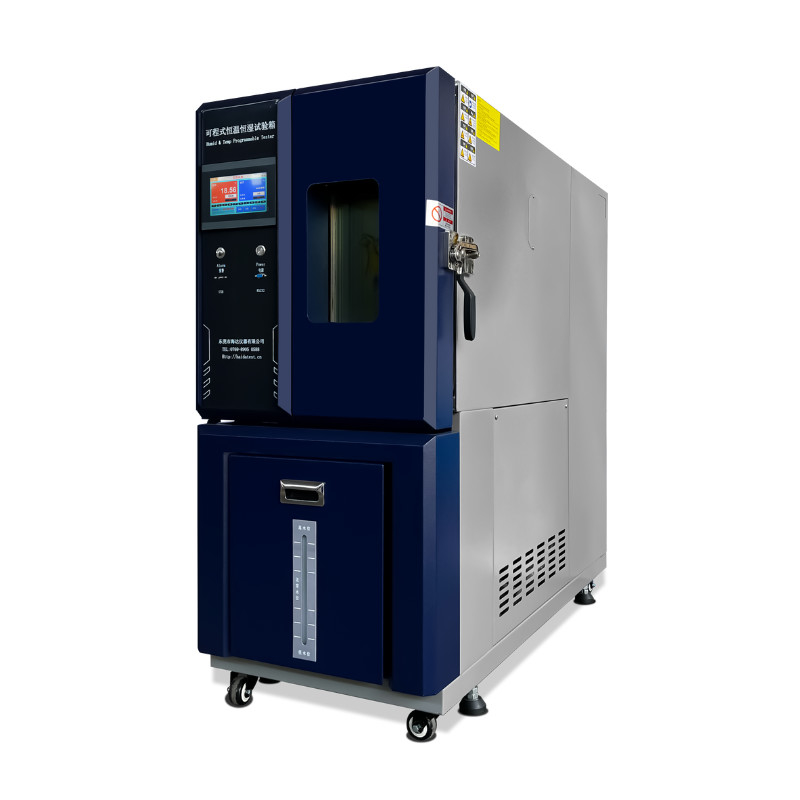

Constant Temperature Humidity Chamber For Environmental Simulation Test

China Constant Temperature Humidity Chamber For Environmental Simulation Test supplier
Constant Temperature Humidity Chamber For Environmental Simulation Test supplier Constant Temperature Humidity Chamber For Environmental Simulation Test supplier Constant Temperature Humidity Chamber For Environmental Simulation Test supplier

Large Image :  Constant Temperature Humidity Chamber For Environmental Simulation Test

Product Details:

Place of Origin: China
Brand Name: HAIDA
Certification: ISO,CE
Model Number: HD-E702

Payment & Shipping Terms:

Minimum Order Quantity: 1units
Price: USD 1500-5000
Packaging Details: wooden case
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 units per month
Contact Now
Detailed Product Description
Temperature Range: -40~+150℃ Temperature Fluctuation: ±0.5℃
Temperature Uniformity: 2℃ Humidity Range: 20~98%RH (Refer Image Below)
Usage: Temperature Humidity Test Chamber Material: Stainless Steel

Constant Temperature And Humidity Test Chamber For Environmental Simulation Test







Introduction:

Temperature And Humidity Test Chamber is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.



Standard Features



Model HD-E702-100-4
Internal dimension (W*D*H) 400*500*500mm
External dimension (W*D*H) 600*1080*1380mm
Temperature range -40~+150℃
Temperature fluctuation ±0.5℃
Temperature uniformity 2℃
Humidity range 20~98%RH (Refer Image below)
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel
Cooling method Air cooling
Controller

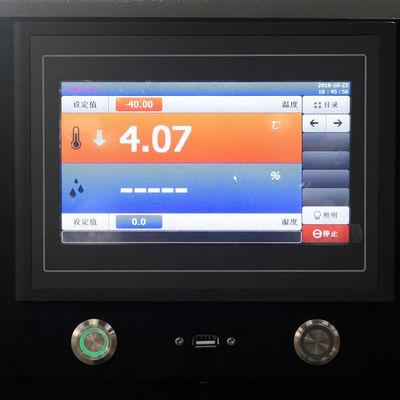

LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor
Lighting Heat resistance
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Sample tray SUS#304 stainless steel, 2pcs
Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage



Constant Temperature Humidity Chamber For Environmental Simulation Test



Chamber Design Features

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain



Constant Temperature Humidity Chamber For Environmental Simulation Test



Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Constant Temperature Humidity Chamber For Environmental Simulation TestConstant Temperature Humidity Chamber For Environmental Simulation Test



After-service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.



Constant Temperature Humidity Chamber For Environmental Simulation Test
