Hot And Cold Environmental Test Chambers With Multi Function Control

China Hot And Cold Environmental Test Chambers With Multi Function Control supplier
Hot And Cold Environmental Test Chambers With Multi Function Control supplier Hot And Cold Environmental Test Chambers With Multi Function Control supplier Hot And Cold Environmental Test Chambers With Multi Function Control supplier

Large Image :  Hot And Cold Environmental Test Chambers With Multi Function Control

Product Details:

Place of Origin: China
Brand Name: Haida
Certification: CE ISO
Model Number: HD-E703-18

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 1000-200000USD
Packaging Details: Export wooden case
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 300 set per month
Contact Now
Detailed Product Description
Power: Electronic Product Name: Environmental Testing Chambers
Material: SUS# Stainless Steel Plate Cooling Method: Water
Output Mode: PID And SSR(control Method) Type: Temperature Shock Tester

            Temperature Shock Environmental Test Chambers With Multi Function Control



1. Description:

Hot And Cold Environmental Test Chambers is a kind of environmental test chamber to check the material of the hot and cold temperature testing in the fast changing environment . that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can be used as a basis to improve their products or reference.


Hot And Cold Environmental Test Chambers With Multi Function Control


Application materials (not limited to the following):
1. Metal, nonmetal
2. Composites
3. medicine, food
4. Wood, copper, aluminum, plastic profiles
5. Wire and cable, paper, film
6. Rubber, textile, aerospace and other industries

Test standard(inculding but not limited to... ):
Compliance with ASTM G53-77 specifications GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.


2. Specification:


Item Specification
Test method Pneumatic operated door switch, two chambers
Basket internal dimension 320Wx230Dx250Hmm (20L)
External chamber dimension 1050Wx1825Dx1440Hmm
High temperature range Room temperature ~+175℃
Low temperature range Room temperature ~-50℃
Testing time Maximum 1000 cycles, 30 minutes for each one
Defrost Do defrost in every 20 cycles
Temperature deviation 3~5℃
Lifting switch time ≤10 seconds
Test hole for cable routing Diameter 50mm on the left of chamber attach a silicone plug
External chamber material High quality electrolytic steel plate spray with powder, antirust
Internal material SUS#304 stainless steel
Thermal insulation material High quality superfine glass fiber
Refrigerant R404A / R23
Cooling method Water cooling
Power supply Three phase, 380V, 50Hz



Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.


3. Features

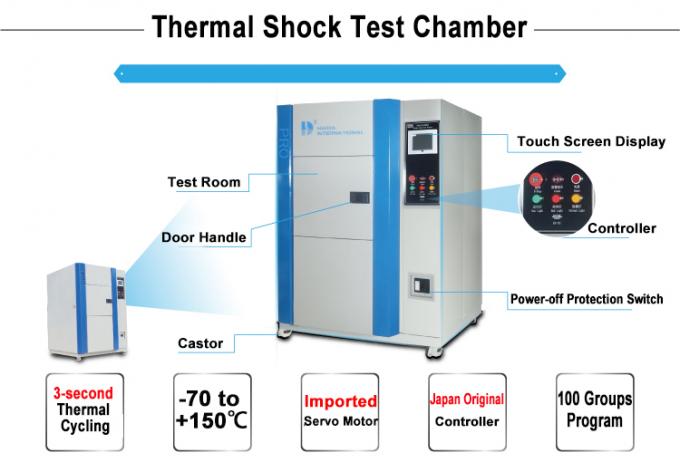

 Temperature Shock Tester

  • Micro processor, multi function control. To control and monitor the compressor, the solenoid valve and the heater .
  • When faults occur, the auto detection and protection function will activate and will automatically cut off the power, the LCD screen will shows the fault status.
  • Appointment function , the equipment can be activate and start for operation through setting (Year, month, date, hour and minute)
  • Accumulation operation time provide a record for management and maintanence.
  • Setting of the backlite of the LCD can extend the useful life of the LCD.
  • Can choose one paragraph of control or the multi-screen process to increase the convenience of its operation.
  • Curve drawing function: After setting up the operation parameters or during the running mode, you can call out the screen to understand the running situations and conditions.
  • Program execution can be suspended (HOLD), Jump paragraph (ADV) and other procedures involved in setting.
  • Recovery time and test time WAIT function.
  • Power breakdown recovery function, can select BREAK, COLD, or HOT.


Thermal Shock Chamber_pdf.pdf



(thermal shock chamber) Related Products:
Model / Link Interior Dimensions(W x D x H) Temperature Range Notes
HD-E703-18 320x230x250mm -50℃-175℃ Within 5 minutes / 2 working chambers
HD-E703-100 500*450*450mm -40 ~ +80℃ Within 5 minutes / 3 working chambers
